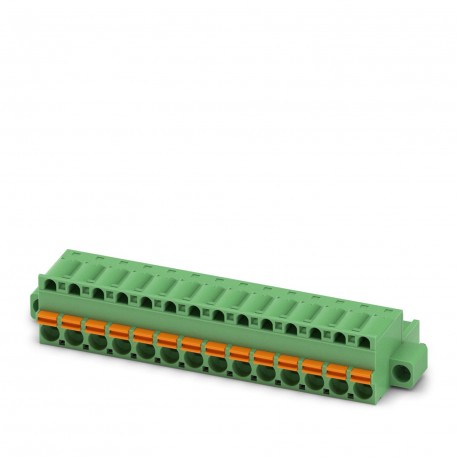

PHOENIX CONTACT FKC 2,5/14-STF FKC 2,5/14-STF 1910649 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FKC 2,5/14-STF 1910649 PHOENIX CONTACT Printed-circuit board connector

FKC 2,5/14-STF

1910649

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector Connector for printed circuit board, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 14, number of rows: 1, number of poles: 14, number of connections: 14, family of articles: FKC 2.5/.. -STF, pitch: 5 mm, connection type: Push-in spring connection, conductor connection direction/printed circuit board: 0 °, clamping hook: - Clamping hook, plug-in system: COMBICON MSTB 2.5, locking: Screw locking, fixing type: Air clamping (screw), packaging type: boxed PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Socket, number of potentials: 14, number of rows: 1, number of positions: 14, number of connections: 14, product range: FKC 2,5/..-STF, pitch: 5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: Screw locking mechanism, mounting: Screw flange, type of packaging: packed in cardboard

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePCB connector
Product familyFKC 2,5/..-STF
Product lineCOMBICON Connectors M
TypeStandard
Number of positions14
Pitch5 mm
Number of connections14
Number of rows1
Number of potentials14
Mounting flangeScrew flange
Data management status
Article revision07
Electrical properties
Nominal current IN12 A
Nominal voltage UN320 V
Rated voltage (III/3)250 V
Rated surge voltage (III/3)4 kV
Rated voltage (III/2)320 V
Rated surge voltage (III/2)4 kV
Rated voltage (II/2)630 V
Rated surge voltage (II/2)4 kV
Connection data
Connection technology
TypeStandard
Connector systemCOMBICON MSTB 2,5
Nominal cross section2.5 mm²
Contact connection typeSocket
Interlock
Locking typeScrew locking mechanism
Mounting flangeScrew flange
Tightening torque0.3 Nm
Conductor connection
Connection methodPush-in spring connection
Conductor/PCB connection direction0 °
Conductor cross section rigid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 2.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 1.5 mm²
Cylindrical gauge a x b / diameter2.8 mm x 2.0 mm / 2.0 mm
Stripping length10 mm
Specifications for ferrules without insulating collar
recommended crimping tool1212034 CRIMPFOX 6
ferrules without insulating collar, according to DIN 46228‑1Cross section: 0.5 mm²; Length: 8 mm ... 10 mm
Cross section: 0.75 mm²; Length: 8 mm ... 10 mm
Cross section: 1 mm²; Length: 8 mm ... 10 mm
Cross section: 1.5 mm²; Length: 8 mm ... 10 mm
Cross section: 2.5 mm²; Length: 10 mm
Specifications for ferrules with insulating collar
recommended crimping tool1212034 CRIMPFOX 6
ferrules with insulating collar, according to DIN 46228‑4Cross section: 0.5 mm²; Length: 8 mm ... 10 mm
Cross section: 0.75 mm²; Length: 8 mm ... 10 mm
Cross section: 1 mm²; Length: 8 mm ... 10 mm
Cross section: 1.5 mm²; Length: 8 mm ... 10 mm
Cross section: 2.5 mm²; Length: 10 mm
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface contact area (top layer)Tin (4 - 8 µm Sn)
Material data - housing
Color (Housing)green (6021)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Material data – actuating element
Color (Actuating element)orange (2003)
Insulating materialPBT
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Dimensions
Dimensional drawingedyvovzxrs.jpg
Pitch5 mm
Width [w]80.02 mm
Height [h]15 mm
Length [l]25.73 mm
Mounting
Flange
Tightening torque0.3 Nm
Notes
Notes on operationIn accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Electrical tests
Air clearances and creepage distances
SpecificationIEC 60664-1:2007-04
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)250 V
Rated surge voltage (III/3)4 kV
minimum clearance value - non-homogenous field (III/3)3 mm
minimum creepage distance (III/3)3.2 mm
Rated insulation voltage (III/2)320 V
Rated surge voltage (III/2)4 kV
minimum clearance value - non-homogenous field (III/2)3 mm
minimum creepage distance (III/2)3 mm
Rated insulation voltage (II/2)630 V
Rated surge voltage (II/2)4 kV
minimum clearance value - non-homogenous field (II/2)3 mm
minimum creepage distance (II/2)3.2 mm
Packaging specifications
Type of packagingpacked in cardboard

ETIM for 1910649 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 14
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5 mm
Modular spacing connections (EF006827) 5 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Type of electric connection (EF003961) Spring clamp connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
