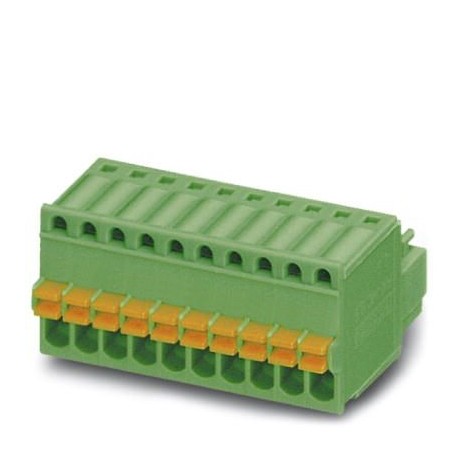

PHOENIX CONTACT FK-MC 0,5/ 2-ST-2,5 FK-MC 0,5/ 2-ST-2,5 1881325 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FK-MC 0,5/ 2-ST-2,5 1881325 PHOENIX CONTACT Printed-circuit board connector

FK-MC 0,5/ 2-ST-2,5

1881325

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector Connector for printed circuit board, nominal section: 0.5 mm², color: green, nominal current: 4 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Female, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, family of articles: FK-MC 0.5/.. -ST, pitch: 2.5mm, connection type: Push-in spring connection, driver/printed circuit board connection direction: 0°, plug-in system: COMBICON FK-MC 0.5, lock: without, fixing type: without, packaging type: boxed

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1881325
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 168 (C-1-2013)
GTIN4017918156572
Weight per Piece (excluding packing)1.260 g
Custom tariff number85366990
Country of originDE (Germany)

Item properties

Brief article descriptionPCB connector
Plug-in systemMICRO COMBICON - FK-MC 0,5
Type of contactFemale connector
Range of articlesFK-MC 0,5/..-ST
Pitch2.5 mm
Number of positions2
Connection methodPush-in spring connection
Number of levels1
Number of connections2
Number of potentials2

Electrical parameters

Rated current4 A
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV

Connection capacity

Conductor cross section solid0.14 mm² ... 0.5 mm²
Conductor cross section flexible0.14 mm² ... 0.5 mm²
Conductor cross section AWG / kcmil26 ... 20
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 0.5 mm²
Cylindrical gauge a x b / diameter- / 1.4 mm
Stripping length8 mm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface contact area (top layer)Tin (4 - 8 µm Sn)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Material data – actuating element

Insulating materialPOM
CTI according to IEC 60112600
Flammability rating according to UL 94HB

Dimensions for the product

Dimensional drawing
CaptionSchematic representation – for additional information, see product range drawing in the Download Center
Length [ l ]19.05 mm
Width [ w ]5.6 mm
Height [ h ]11.75 mm
Pitch2.5 mm
Height (without solder pin)11.75 mm
Dimension a2.5 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.

General product information

Type of noteNotes on operation
NoteIn accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C (dependent on the derating curve)

Termination and connection method

Test – repeated connection and releaseIEC 60999-1:1999-11

Pull-out test

Conductor cross section / conductor type / tensile force0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
0.5 mm² / solid / > 20 N
0.5 mm² / flexible / > 20 N

Air clearances and creepage distances

SpecificationIEC 60664-1:1992-10 + A1:2000-02 + A2:2002-05
Insulating material groupI
Rated insulation voltage (III/3)100 V
Rated insulation voltage (III/2)160 V
Rated insulation voltage (II/2)320 V
Rated surge voltage (III/3)1.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV

Temperature cycles

SpecificationIEC 60999-1:1999-11
Test current (minimum cross section)4 A
Test current (maximum cross section)6 A
Temperature cycles192

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1881325 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 2
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 2.5 mm
Modular spacing connections (EF006827) 2.5 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Type of electric connection (EF003961) Spring clamp connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
