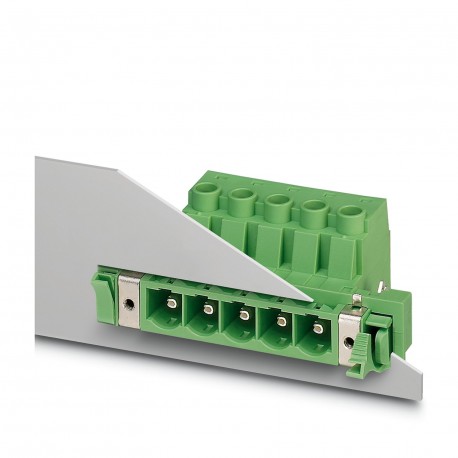

PHOENIX CONTACT DFK-PC 16/ 4-STF-SH-10,16 DFK-PC 16/ 4-STF-SH-10,16 1703632 PHOENIX CONTACT Feed-through plug View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DFK-PC 16/ 4-STF-SH-10,16 1703632 PHOENIX CONTACT Feed-through plug

DFK-PC 16/ 4-STF-SH-10,16

1703632

PHOENIX CONTACT

10 Pcs.

Feed-through plug Wall pass-through terminal, nominal section: 16 mm², color: green, nominal current: 76 A, nominal voltage (III/2): 1000 V, contact surface: silver, contact type: Male, number of potentials: 4, number of rows: 1, number of poles: 4, number of connections: 4, family of articles: DFK-PC 16/.. -STF-SH, pitch: 10.16 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, driver/printed circuit board connection direction: 0 °, pin length [P]: 4.1 mm, plug-in system: COMBICON PC 16, Plug-in face orientation: Standard, lock: Screw lock, fixing type: Air clamping (screw), Packaging Type: Boxed Packaging Feed-through connector, Nominal cross-section: 16 mm2, Colour: green, Rated current: 76 A, Rated voltage (III/2): 1000 V, Contact surface: Ag, Contact type: Pin, Number of potentials: 4, Number of rows: 1, Number of poles: 4, Number of terminals: 4, Article family: DFK-PC 16/.. -STF-SH, Pitch: 10.16 mm, Connection type: Screw connection with pull sleeve, Screw attack shape: L Longitudinal slot, Connection direction conductor/board: 0 °, Pin length [P]: 4.1 mm, Plug-in system: COMBICON PC 16, Electrical properties: shielded, Orientation mating face: Standard, Locking: Screw lock, Fastening type: Screw flange, Packaging type: packed in a carton

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1703632
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 583 (C-1-2013)
GTIN4017918994471
Weight per Piece (excluding packing)46.400 g
Custom tariff number85366990
Country of originPL (Poland)

Dimensions

Length [ l ]44.1 mm
Width [ w ]76 mm
Height [ h ]30.55 mm
Pitch10.16 mm
Dimension a30.48 mm

General

Range of articlesDFK-PC 16/..-STF-SH
Number of positions4
Connection methodScrew connection with tension sleeve
Insulating material groupI
Rated surge voltage (III/3)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)6 kV
Rated voltage (III/3)1000 V
Rated voltage (III/2)1000 V
Rated voltage (II/2)1000 V
Connection in acc. with standardEN-VDE
Nominal current IN76 A
Nominal cross section16 mm²
Maximum load current76 A
Insulating materialPA
Flammability rating according to UL 94V0
Internal cylindrical gageA6
Stripping length12 mm
Screw threadM4
Tightening torque, min1.7 Nm
Tightening torque max1.8 Nm

Connection data

Conductor cross section solid min.0.75 mm²
Conductor cross section solid max.16 mm²
Conductor cross section flexible min.0.75 mm²
Conductor cross section flexible max.16 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.16 mm² Only in connection with CRIMPFOX 16 S
Conductor cross section flexible, with ferrule with plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.16 mm² Only in connection with CRIMPFOX 16 S
Conductor cross section AWG min.18
Conductor cross section AWG max.6
2 conductors with same cross section, solid min.0.75 mm²
2 conductors with same cross section, solid max.6 mm²
2 conductors with same cross section, stranded min.0.75 mm²
2 conductors with same cross section, stranded max.6 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.4 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.6 mm²
Minimum AWG according to UL/CUL20
Maximum AWG according to UL/CUL6

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
