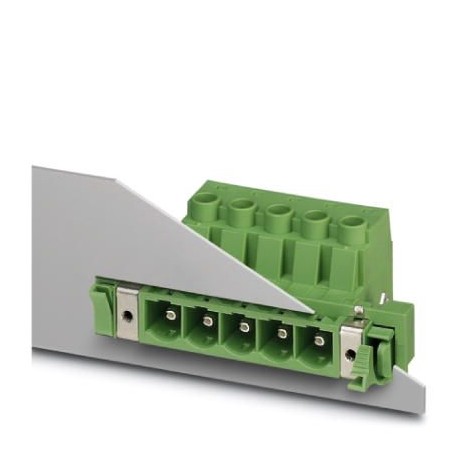

PHOENIX CONTACT DFK-PC 16/ 2-STF-SH-10,16 DFK-PC 16/ 2-STF-SH-10,16 1703616 PHOENIX CONTACT Feed-through plug View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DFK-PC 16/ 2-STF-SH-10,16 1703616 PHOENIX CONTACT Feed-through plug

DFK-PC 16/ 2-STF-SH-10,16

1703616

PHOENIX CONTACT

10 Pcs.

Feed-through plug Wall pass block, nominal section: 16 mm², color: green, nominal current: 76 A, nominal voltage (III/2): 1000 V, contact surface: silver, contact type: Male, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, family of articles: DFK-PC 16/.. -STF-SH, pitch: 10.16 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, driver/printed circuit board connection direction: 0 °, pin length [P]: 4.1 mm, plug-in system: COMBICON PC 16, Plug-in face orientation: Standard, lock: Screw lock, fixing type: Air clamping (screw), Packaging Type: Boxed Packaging

Automation > Panel feed-through terminal block
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1703616
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 583 (C-1-2013)
GTIN4017918994457
Weight per Piece (excluding packing)28.300 g
Custom tariff number85366990
Country of originPL (Poland)

Item properties

Brief article descriptionFeed-through plug
Plug-in systemPOWER COMBICON 16
Type of contactMale connector
Range of articlesDFK-PC 16/..-STF-SH
Pitch10.16 mm
Number of positions2
Connection methodScrew connection with tension sleeve
Drive form screw headSlotted
Screw threadM4
LockingScrew flange
Number of levels1
Number of connections2
Number of potentials2

Electrical parameters

Rated current76 A
Rated insulation voltage (III/2)1000 V
Rated surge voltage (III/2)8 kV

Connection capacity

Conductor cross section solid0.75 mm² ... 16 mm²
Conductor cross section flexible0.75 mm² ... 16 mm²
Conductor cross section AWG / kcmil18 ... 6
Conductor cross section flexible, with ferrule without plastic sleeve0.5 mm² ... 16 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.5 mm² ... 16 mm²
2 conductors with same cross section, solid0.75 mm² ... 6 mm²
2 conductors with same cross section, flexible0.75 mm² ... 6 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve0.5 mm² ... 4 mm²
2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve0.5 mm² ... 6 mm²
Stripping length12 mm
Torque1.7 Nm ... 1.8 Nm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsElectroplated silver
Metal surface terminal point (top layer)Silver (4 - 8 µm Ag)
Metal surface contact area (top layer)Silver (4 - 8 µm Ag)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Dimensional drawing
Length [ l ]44.1 mm
Width [ w ]55.68 mm
Height [ h ]30.55 mm
Pitch10.16 mm
Height (without solder pin)27.8 mm
Solder pin [P]4.1 mm
Dimension a10.16 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package10
Denomination packing unitsPcs.

Air clearances and creepage distances

SpecificationIEC 60664-1:2007-04
Insulating material groupI
Voltage1000 V
Rated insulation voltage (III/3)1000 V
Rated insulation voltage (III/2)1000 V
Rated insulation voltage (II/2)1000 V
Rated surge voltage (III/3)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)6 kV

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1703616 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Other
Number of poles (EF001391) 2
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 10.16 mm
Modular spacing connections (EF006827) 10.16 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 76 A
Rated voltage (EF000228) 1000 V
Rated surge voltage (EF002993) 6 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.75 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.5 mm²
Connectable conductor cross section solid-core (EF007337) 0.75 mm²
Type of electric connection (EF003961) Screw connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Silver
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
