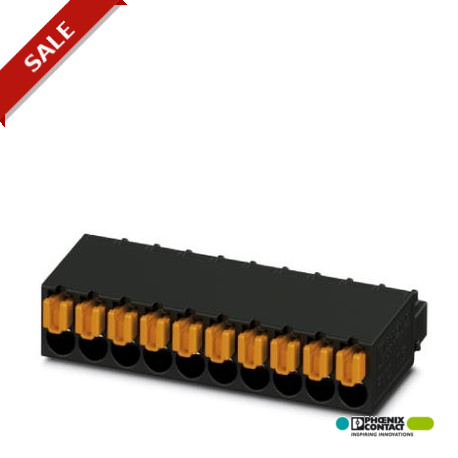

PHOENIX CONTACT FMC 0,5/ 9-ST-2,54 C1 FMC 0,5/ 9-ST-2,54 C1 1706254 PHOENIX CONTACT Plug component, Nominal current: 6 A, Rated voltage (III/2): 1.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FMC 0,5/ 9-ST-2,54 C1 1706254 PHOENIX CONTACT Plug component, Nominal current: 6 A, Rated voltage (III/2): 1..

FMC 0,5/ 9-ST-2,54 C1

1706254

PHOENIX CONTACT

100 Pcs.

Plug component, Nominal current: 6 A, Rated voltage (III/2): 160 V, Number of positions: 9, Pitch: 2.54 mm, Connection method: Push-in spring connection, Color: black, Contact surface: Gold, Fixed coding of the first position, can be combined with MC(V) 0,5/...-G-2,54...C1 headers Connector for printed circuit board, nominal section: 0.5 mm², color: black, nominal current: 6 A, nominal voltage (III/2): 160 V, contact surface: Gold, contact type: Female, number of potentials: 9, number of rows: 1, number of poles: 9, number of connections: 9, family of articles: FMC 0.5/.. -ST, pitch: 2.54mm, connection type: Push-in spring connection, conductor/printed circuit board connection direction: 0°, plug-in system: COMBICON FMC 0.5, locking: without, fixing type: without, packing type: box-packed, first pole fixed coding; can be combined with MC(V) 0.5/...-G-2.54...C1 base housings

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Dimensions

Length15.4 mm
Height5.4 mm
Width23.32 mm
Pitch2.54 mm
Dimension a20.32 mm

General

Range of articlesFMC 0,5/..-ST
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)32 V
Rated voltage (III/2)160 V
Rated voltage (II/2)160 V
Connection in acc. with standardEN-VDE
Nominal current IN6 A
Nominal cross section0.5 mm²
Insulating materialLCP
Flammability rating according to UL 94V0
Stripping length7 mm
Number of positions9

Connection data

Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.0.5 mm²
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.0.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.0.34 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.0.25 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.20

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
