PHOENIX CONTACT HC-CIF-B24-HFFD-WH-AL HC-CIF-B24-HFFD-WH-AL 1404213 PHOENIX CONTACT DIN rail mounting frame View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-CIF-B24-HFFD-WH-AL 1404213 PHOENIX CONTACT DIN rail mounting frame

HC-CIF-B24-HFFD-WH-AL

1404213

PHOENIX CONTACT

1 Pcs.

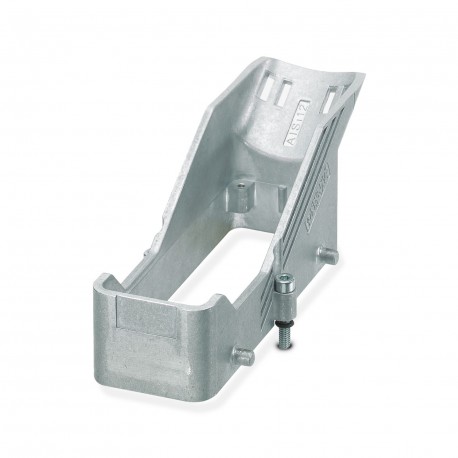

DIN rail mounting frame Mounting frame for HEAVYCON connectors, top for cross flange, for bottom parts with HC-CIF cross flange... BFWD.. or HC-CIF bottoms... BFFD.., for contact inserts of the B24 construction, with M4 screws with 3 mm inner hexagon head, for symmetrical NS35/7.5 rails HEAVYCON DIN rail mounting frame, upper part for double locking latch, for HC-CIF...BFWD.. lower parts with double locking latch or for HC-CIF...BFFD.. lower parts, for type B24 contact inserts, with M4 screws with 3 mm Allen screw head, for NS35/7,5 DIN rails

Connectors > Fixing element for industrial connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeDIN rail mounting frame
Housing typeDIN rail mounting frame
SeriesHC-CIF-AL
TypeB24
Fixing screwsM4 with Allen screw, wrench size: 3 mm
Protective coverno
Pg screw connectionnone
Data management status
Article revision01
Dimensions
Dimensional drawingibouhmsyfb.jpg
Width56 mm
Height49 mm
Length150.2 mm
Material specifications
MaterialCast aluminum, uncoated
Housing materialCast aluminum, uncoated
Locking latch materialSteel, galvanized
Mechanical properties
Mechanical data
Locking typeScrew
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 125 °C
Mounting
Assembly noteFor screw locking: M4, 3 mm Allen screw, 2 Nm tightening torque
Fixing screwsM4 with Allen screw, wrench size: 3 mm

ETIM for 1404213 Connectors (EC002310)
Feature Name Feature Value
Type of fixing element (EF012206) Rail bracket
Material assembly frame (EF007542) Other
With PE-connection (EF005600) No
Mounting type of the fixing element (EF012207) Screw
Fixing direction (EF012208) Swivelling
Width (EF000008) 56 mm
Height (EF000040) 49 mm
Depth (EF000049) 150.2 mm
Type of mounting rail (EF012209) DIN rail (top hat rail)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
