View larger
Images are for illustrative purposes only. Please refer to data sheet for details

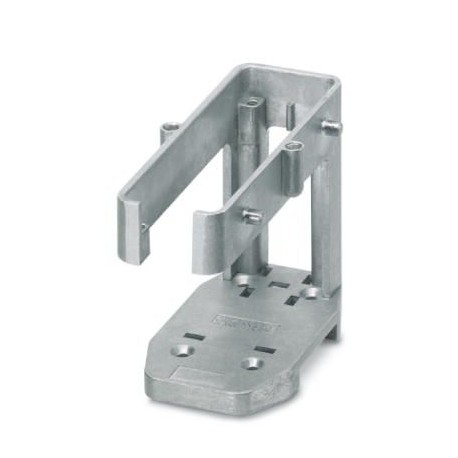

HC-CIF-B24-BFFD-FH-AL 1404211 PHOENIX CONTACT DIN rail mounting frame
HC-CIF-B24-BFFD-FH-AL
1404211
PHOENIX CONTACT
1 Pcs.
DIN rail mounting frame
Mounting frame for HEAVYCON connectors, bottom for cross flange, for overhead housing with cross flange or HC-CIF-.. HFFD.., for contact inserts of the B24 construction, for symmetrical rails NS35/7.5
Connectors > Fixing element for industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1404211 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 693 (C-2-2017) |
| GTIN | 4046356680233 |
| Weight per Piece (excluding packing) | 173.900 g |
| Custom tariff number | 85389099 |
| Country of origin | PL (Poland) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027143424eCl@ss 5.127143400eCl@ss 6.027261200eCl@ss 7.027440206eCl@ss 8.027440206eCl@ss 9.027440210
| Feature Name | Feature Value |
|---|---|
| Type of fixing element (EF012206) | Rail bracket |
| Material assembly frame (EF007542) | Other |
| With PE-connection (EF005600) | No |
| Mounting type of the fixing element (EF012207) | Support rail |
| Fixing direction (EF012208) | Swivelling |
| Width (EF000008) | 56 mm |
| Height (EF000040) | 85 mm |
| Depth (EF000049) | 120 mm |
| Type of mounting rail (EF012209) | DIN rail (top hat rail) |
