View larger
Images are for illustrative purposes only. Please refer to data sheet for details

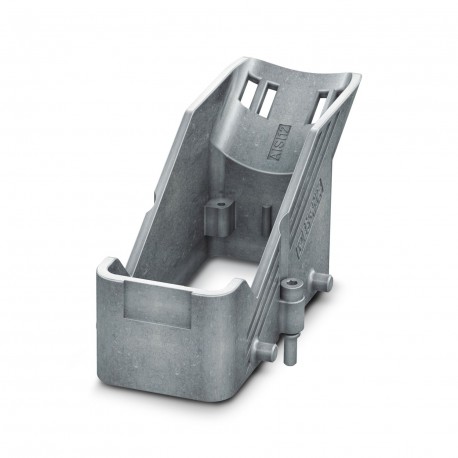

HC-CIF-B16-HFFD-WH-AL 1404218 PHOENIX CONTACT DIN rail mounting frame
HC-CIF-B16-HFFD-WH-AL
1404218
PHOENIX CONTACT
1 Pcs.
DIN rail mounting frame
Mounting frame for HEAVYCON connectors, top for cross flange, for bottom parts with HC-CIF cross flange... BFWD.. or for HC-CIF bottoms... BFFD.., for contact inserts of the B16 construction, with M4 screws with 3 mm inner hexagon head, for symmetrical NS35/7.5 rails
HEAVYCON DIN rail mounting frame, upper part for double locking latch, for HC-CIF...BFWD.. lower parts with double locking latch or for HC-CIF...BFFD.. lower parts, for type B16 contact inserts, with M4 screws with 3 mm Allen screw head, for NS35/7,5 DIN rails
Connectors > Fixing element for industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | DIN rail mounting frame |
| Housing type | DIN rail mounting frame |
| Series | HC-CIF-AL |
| Type | B16 |
| Fixing screws | M4 with Allen screw, wrench size: 3 mm |
| Protective cover | no |
| Pg screw connection | none |
| Data management status | |
| Article revision | 01 |
Dimensions
| Dimensional drawing |  |
| Width | 56 mm |
| Height | 49 mm |
| Length | 123.7 mm |
Material specifications
| Material | Cast aluminum, uncoated |
| Housing material | Cast aluminum, uncoated |
| Locking latch material | Steel, galvanized |
Mechanical properties
| Mechanical data | |
| Locking type | Screw |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Mounting
| Assembly note | For screw locking: M4, 3 mm Allen screw, 2 Nm tightening torque |
| Fixing screws | M4 with Allen screw, wrench size: 3 mm |
| Feature Name | Feature Value |
|---|---|
| Type of fixing element (EF012206) | Rail bracket |
| Material assembly frame (EF007542) | Other |
| With PE-connection (EF005600) | No |
| Mounting type of the fixing element (EF012207) | Screw |
| Fixing direction (EF012208) | Swivelling |
| Width (EF000008) | 56 mm |
| Height (EF000040) | 49 mm |
| Depth (EF000049) | 123.7 mm |
| Type of mounting rail (EF012209) | DIN rail (top hat rail) |
