View larger
Images are for illustrative purposes only. Please refer to data sheet for details

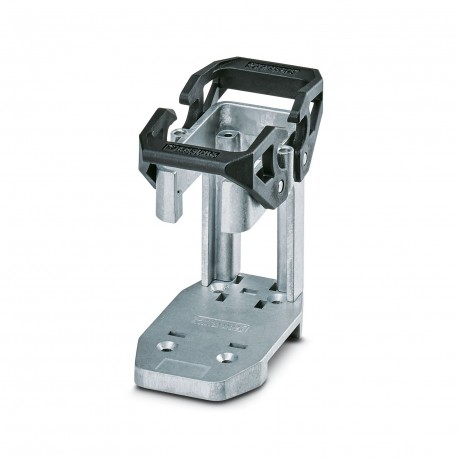

HC-CIF-B10-BFWD-FH-AL 1404220 PHOENIX CONTACT DIN rail mounting frame
HC-CIF-B10-BFWD-FH-AL
1404220
PHOENIX CONTACT
1 Pcs.
DIN rail mounting frame
Mounting frame for HEAVY connectors with cross-flange bottom for housing without cross-flange or HC-CIF top-.. HFFD.., for contact inserts of the B10 construction, for symmetrical rails NS35/7.5
HEAVYCON DIN rail mounting frame, lower part with double locking latch, for housing without double locking latch or HC-CIF-..HFFD.. upper part, for type B10 contact inserts, for NS35/7,5 DIN rails
Connectors > Fixing element for industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | DIN rail mounting frame |
| Housing type | DIN rail mounting frame |
| Series | HC-CIF-AL |
| Type | B10 |
| Protective cover | no |
| Pg screw connection | none |
| Data management status | |
| Article revision | 02 |
Dimensions
| Dimensional drawing |  |
| Width | 56 mm |
| Height | 85 mm |
| Length | 93.5 mm |
Material specifications
| Material | Cast aluminum, uncoated |
| Housing material | Cast aluminum, uncoated |
| Locking latch material | PA |
Mechanical properties
| Mechanical data | |
| Locking type | Latch |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Mounting
| Mounting type | DIN rail: 35 mm |
| Assembly note | A double locking latch is not mounted, which means that an assembled cable set can be used more easily |
| Feature Name | Feature Value |
|---|---|
| Type of fixing element (EF012206) | Rail bracket |
| Material assembly frame (EF007542) | Other |
| With PE-connection (EF005600) | No |
| Mounting type of the fixing element (EF012207) | Support rail |
| Fixing direction (EF012208) | Swivelling |
| Width (EF000008) | 56 mm |
| Height (EF000040) | 85 mm |
| Depth (EF000049) | 93.5 mm |
| Type of mounting rail (EF012209) | DIN rail (top hat rail) |
