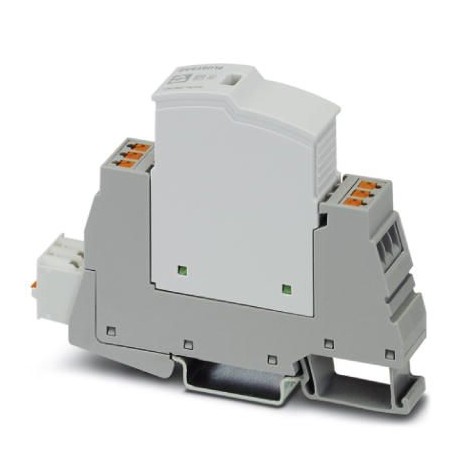

PLT-SEC-T3-60-FM-PT 2907926 PHOENIX CONTACT Type 3 surge protection device
PLT-SEC-T3-60-FM-PT
2907926
PHOENIX CONTACT
5 Pcs.
Type 3 surge protection device
Type 3 surge protection, consisting of plug-in protection and base element, with integrated status indicator and remote indication for single-phase power supply networks. Rated Voltage: 60VAC/DC
Automation > Surge protection device for terminal equipment
Trabtech (TT)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2907926 |
|---|---|
| Packing unit | 5 pc |
| GTIN | 4055626257624 |
| Weight per Piece (excluding packing) | 77.160 g |
| Custom tariff number | 85363030 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (operating voltage remote contact ≤ 250 V) |
| ≤ 6000 m (operating voltage remote contact ≤ 150 V) | |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 30g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (operation) | 5g (5 ... 500 Hz / 2.5 h / X, Y, Z) |
General
| EN type | T3 |
|---|---|
| IEC power supply system | TN-S |
| Number of ports | One |
| Mode of protection | L-N |
| L-PE | |
| N-PE | |
| Mounting type | DIN rail: 35 mm |
| Color | light gray RAL 7035 |
| traffic grey A RAL 7042 | |
| Housing material | PA 6.6-FR 20% GF |
| PA 6.6-FR | |
| Degree of pollution | 2 |
| Flammability rating according to UL 94 | V-0 |
| Type | DIN rail module, two-section, divisible |
| Number of positions | 2 |
| Surge protection fault message | Optical, remote indicator contact |
Protective circuit
| Nominal voltage UN | 60 V AC (TN-S) |
|---|---|
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous voltage UC | 80 V AC |
| Rated load current IL | 26 A (at 30 °C) |
| Residual current IPE | ≤ 5 µA |
| Nominal discharge current In(8/20) µs | 2 kA |
| Standby power consumption PC | ≤ 5.3 mVA (at UREF) |
| ≤ 8.4 mVA (at UC) | |
| Reference test voltage UREF | 66 V AC |
| Combination wave UOC | 4 kV |
| Voltage protection level Up(L-N) | ≤ 0.48 kV |
| Voltage protection level Up(L-PE) | ≤ 0.8 kV |
| Voltage protection level Up(N-PE) | ≤ 0.8 kV |
| TOV behavior at UT(L-N) | 120 V AC (120 min / withstand mode) |
| TOV behavior at UT(L-PE) | 120 V AC (120 min / withstand mode) |
| Response time tA(L-N) | ≤ 25 ns |
| Response time tA(L-PE) | ≤ 100 ns |
| Response time tA(N-PE) | ≤ 100 ns |
| Short-circuit current rating ISCCR | 10 kA AC |
| Max. backup fuse with branch wiring | 32 A (gG / B / C) |
| Maximum backup fuse for through wiring | 25 A (gG / B / C) |
Additional technical data
| Short-circuit current rating ISCCR | 0.25 kA DC (without additional backup fuse) |
|---|---|
| 5 kA DC (for 20 A gG / B backup fuse) | |
| Maximum discharge current Imax(8/20) µs | 4 kA |
| Maximum continuous voltage UC | 80 V DC |
| Mode of protection | (DC+) - (DC-) |
| (DC+/DC-) - PE |
Indicator/remote signaling
| Switching function | PDT contact |
|---|---|
| Operating voltage | 250 V AC |
| 125 V DC (200 mA DC) | |
| Operating current | 0.5 A AC |
| 0.5 A DC (75 V DC) | |
| Connection method | Push-in connection |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section solid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 30 ... 12 |
| Stripping length | 10 mm |
Connection data
| Connection method | Push-in connection |
|---|---|
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Stripping length | 10 mm |
Classifications
| Feature Name | Feature Value |
|---|---|
| Max. continuous voltage AC (EF004198) | 80 V |
| Voltage protection level L-N (EF004236) | 0.48 kV |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 4 mm² |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 2.5 mm² |
| With remote signalling contact (EF000422) | Yes |
| Signalling at the device (EF004241) | Optic |
| Category type 3 (EF004231) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
