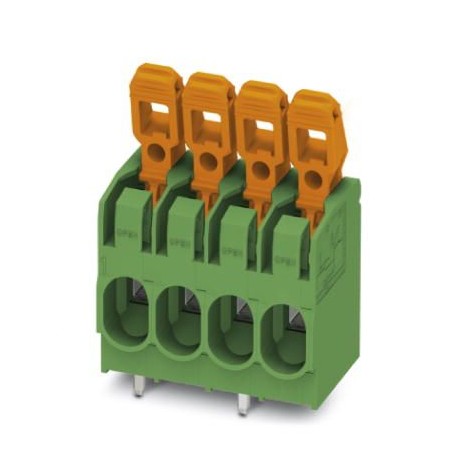

PLH 5/ 6-7,5-ZF BD:6-1 1715107 PHOENIX CONTACT PCB terminal block

PLH 5/ 6-7,5-ZF BD:6-1

1715107

PHOENIX CONTACT

25 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 41 A, dimensioning voltage (III/2): 1000 V, nominal section: 6 mm², Number of potentials: 6, Number of rows: 1, Number of poles per row: 6, article family: PLH 5/, pitch: 7.5 mm, connection type: Spring push lock connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 0°, color: green, Pin arrangement: Double linear pin arrangement, Pin length [P]: 3.6 mm, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1715107
Packing unit25 pc
Minimum order quantity25 pc
NoteMade to Order (non-returnable)
GTIN4055626388564
Weight per Piece (excluding packing)25.690 g
Custom tariff number85369010
Country of originSK (Slovakia)

Dimensions

Length [ l ]22.8 mm
Pitch7.5 mm
Dimension a37.5 mm
Width [ w ]46 mm
Height24.1 mm
Height [ h ]27.7 mm
Solder pin [P]3.6 mm
Pin spacing12.5 mm
Hole diameter2 mm

General

Range of articlesPLH 5/
Insulating material groupI
Rated surge voltage (III/3)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)6 kV
Rated voltage (III/3)1000 V
Rated voltage (III/2)1000 V
Rated voltage (II/2)1000 V
Nominal current IN41 A
Nominal cross section6 mm²
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Stripping length12 mm
Number of positions6

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.6 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.6 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.2 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.6 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.2 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.6 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.10
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.2.5 mm²

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
