View larger
Images are for illustrative purposes only. Please refer to data sheet for details

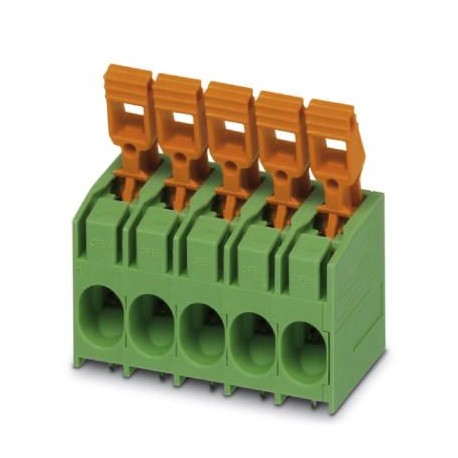

PLH 16/ 5-10 BU/GY/GY/GY/GN 1708845 PHOENIX CONTACT PCB terminal block
PLH 16/ 5-10 BU/GY/GY/GY/GN
1708845
PHOENIX CONTACT
25 Pcs.
PCB terminal block
Terminal block for printed circuit board, nominal current: 76 A, dimensioning voltage (III/2): 400 V, nominal cross-section: 16 mm², Number of potentials: 5, Number of rows: 1, Number of poles per row: 5, article family: PLH 16/, pitch: 10 mm, connection type: Spring push lock connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 0°, color: multicolor, Pin arrangement: Double linear pin arrangement, Pin length [P]: 4.5 mm, Packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General
| Range of articles | PLH 16/ |
|---|---|
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
| Rated voltage (III/3) | 400 V |
| Rated voltage (III/2) | 400 V |
| Rated voltage (II/2) | 800 V |
| Nominal current IN | 76 A |
| Nominal cross section | 16 mm² |
| Solder pin surface | |
| Stripping length | 18 mm |
| Number of positions | 5 |
Connection data
| Conductor cross section AWG min. | 18 |
|---|---|
| Conductor cross section AWG max. | 4 |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 0.75 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 4 mm² |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
