View larger
Images are for illustrative purposes only. Please refer to data sheet for details

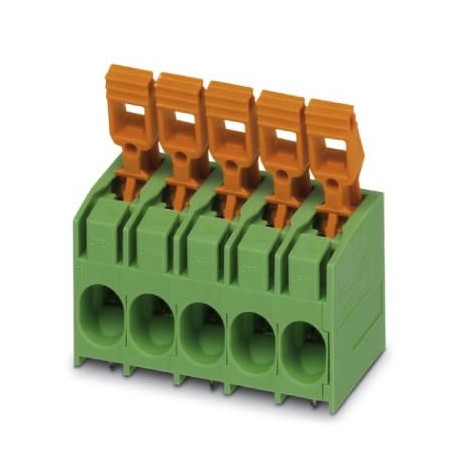

PLH 16/ 2-10 BD:+,- 1709774 PHOENIX CONTACT PCB terminal block
PLH 16/ 2-10 BD:+,-
1709774
PHOENIX CONTACT
25 Pcs.
PCB terminal block
Terminal block for printed circuit board, nominal current: 76 A, dimensioning voltage (III/2): 1000 V, nominal cross-section: 16 mm², Number of potentials: 2, Number of rows: 1, Number of poles per row: 2, article family: PLH 16/, pitch: 10 mm, connection type: Spring push lock connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 0°, color: green, Pin arrangement: Double linear pin arrangement, Pin length [P]: 4.5 mm, packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Length [ l ] | 30.5 mm |
|---|---|
| Pitch | 10 mm |
| Dimension a | 10 mm |
| Width [ w ] | 21.4 mm |
| Height | 29 mm |
| Height [ h ] | 33.5 mm |
| Solder pin [P] | 4.5 mm |
| Pin spacing | 12.5 mm |
| Hole diameter | 1.6 mm |
General
| Range of articles | PLH 16/ |
|---|---|
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
| Rated voltage (III/3) | 400 V |
| Rated voltage (III/2) | 400 V |
| Rated voltage (II/2) | 800 V |
| Nominal current IN | 76 A |
| Nominal cross section | 16 mm² |
| Solder pin surface | |
| Stripping length | 18 mm |
| Number of positions | 2 |
Connection data
| Conductor cross section AWG min. | 18 |
|---|---|
| Conductor cross section AWG max. | 4 |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 0.75 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 4 mm² |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
