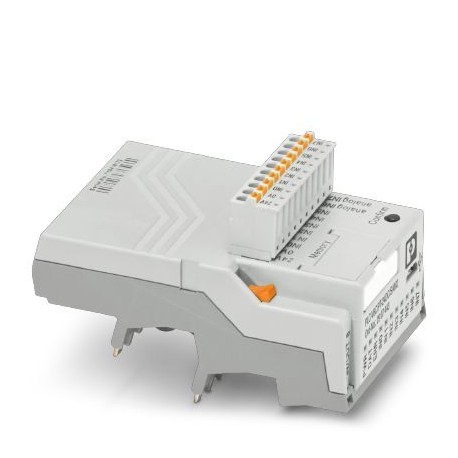

PLC-V8C/PT-24DC/SAM2 2907443 PHOENIX CONTACT Controller

PLC-V8C/PT-24DC/SAM2

2907443

PHOENIX CONTACT

1 Pcs.

Controller Standalone PLC logic module, 2nd generation, with 16 I/O, pluggable into 8 digital or analogue PLC-INTERFACE terminals, not expandable, real-time clock, Micro-USB female connector, housing for memory module and Bluetooth adapter, push-in connection

Automation > Logic module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2907443
Packing unit1 pc
Catalog pagePage 428 (C-5-2017)
GTIN4055626218182
Weight per Piece (excluding packing)130.000 g
Custom tariff number85371098
Country of originDE (Germany)

Power supply

Supply voltage24 V DC
Supply voltage range19.2 V DC ... 26.4 V DC
Typical input current at UN40 mA
Maximum input current at UN160 mA
Protective circuitReverse polarity protection
Surge protection
Status displayGreen LED

Input data (digital)

Number of inputs8 (2 configurable as analog)
Description of the inputEN 61131-2, type 3
Input voltage24 V DC
Signal level "0" signal< 5 V
Signal level "1" signal> 11 V
Input current "0" signal< 1 mA
Input current "1" signaltyp. 2.5 mA
Status displayYellow LED

Input data (analog)

Number of inputs2 (IN6 and IN7 are configurable as analog)
Input voltage range0 V ... 10 V
Input resistance> 3.5 kΩ

Input data (PLC-INTERFACE)

Number of inputs≤ 8
Description of the inputtechnical data depends on the PLC-INTERFACE terminal block used
Input voltage19 V DC
Typical current consumption4 mA
Input resistance< 100 mΩ

Output data

Number of outputs≤ 8
Nominal output voltage24 V DC
Nominal current9 mA

General

Realtime clock accuracy±2 s/d
Realtime clock buffer time96 h (Capacitor)
Colorgray
Mounting positionany
Assembly instructionscan be plugged onto 8 x PLC-INTERFACE terminal blocks
Operating mode100% operating factor
Degree of protectionIP20

Connection data (supply and digital inputs)

Connection methodPush-in connection
Stripping length9 mm
Conductor cross section solid0.14 mm² ... 1.5 mm²
Conductor cross section flexible0.14 mm² ... 1.5 mm²
0.25 mm² ... 0.5 mm² (Ferrule with plastic sleeve)
0.25 mm² ... 1.5 mm² (Ferrules without plastic sleeve)
Conductor cross section AWG26 ... 16
Number of connections1
Number of positions10
NoteDevice supply and 8 x inputs

Connection data (programming interface)

Connection methodMicro USB type B
Number of connections1

Connection data (memory)

Connection methodS-PORT (socket)
Number of connections1
Number of positions12
NoteFor connecting the memory module

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Max. permissible relative humidity (operation)95 %

Dimensions

Width50 mm
Height111 mm
Depth87 mm

Standards and Regulations

DesignationAir clearances and creepage distances between the power circuits
Standards/regulationsDIN EN 50178
Rated insulation voltage50 V
Rated surge voltage0.8 kV
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryIII
ConformanceCE-compliant

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2907443 PLC's (EC001417)
Feature Name Feature Value
Supply voltage DC (EF007534) 19.2 V
Voltage type (supply voltage) (EF002991) DC
Switching current (EF000188) 0.009 A
Number of analogue inputs (EF001994) 2
Number of analogue outputs (EF001995) 8
Number of digital inputs (EF001992) 8
Number of digital outputs (EF001993) 8
With relay output (EF003198) Yes
Number of HW-interfaces industrial Ethernet (EF003020) 0
Number of interfaces PROFINET (EF006932) 0
Number of HW-interfaces RS-232 (EF003021) 0
Number of HW-interfaces RS-422 (EF003022) 0
Number of HW-interfaces RS-485 (EF003023) 0
Number of HW-interfaces serial TTY (EF003024) 0
Number of HW-interfaces USB (EF003025) 0
Number of HW-interfaces parallel (EF003026) 0
Number of HW-interfaces wireless (EF006933) 0
Number of HW-interfaces other (EF003027) 1
With optical interface (EF003028) No
IO link master (EF007298) No
Redundancy (EF003156) No
Basic device (EF007279) Yes
Expandable (EF000119) Yes
Expansion device (EF007163) No
With time switch clock (EF000256) Yes
Suitable for rail mounting (EF003972) No
Wall mounting/direct mounting (EF007020) No
Front built-in possible (EF007016) No
Rack-assembly possible (EF007018) No
Suitable for safety functions (EF001597) No
SIL according to IEC 61508 (EF009889) None
Performance level according to EN ISO 13849-1 (EF007399) None
Appendant operation agent (Ex ia) (EF004141) No
Appendant operation agent (Ex ib) (EF004142) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 50 mm
Height (EF000040) 48.5 mm
Depth (EF000049) 82.5 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
