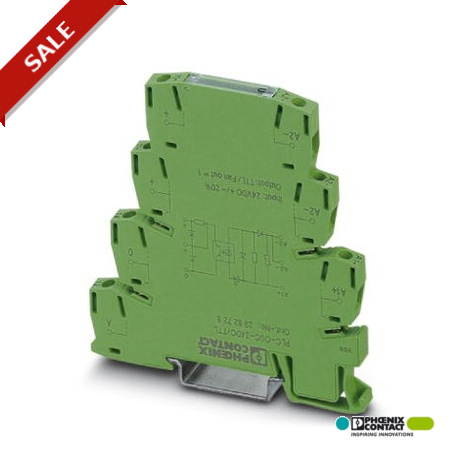

PHOENIX CONTACT PLC-OPT-24DC/TTL PLC-OPT- 24DC/TTL 2900363 PHOENIX CONTACT PLC solid-state relay with Push-in connection, for mounting on DIN.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PLC-OPT- 24DC/TTL 2900363 PHOENIX CONTACT PLC solid-state relay with Push-in connection, for mounting on DIN..

PLC-OPT-24DC/TTL

2900363

PHOENIX CONTACT

1 Pcs.

PLC solid-state relay with Push-in connection, for mounting on DIN rail NS 35/7.5, input: 24 V DC, output: TTL (5 V DC) PLC-INTERFACE for TTL signal, consisting of PLC-O.../TTL base terminal block with push-in connection and integrated solid-state relay, for installation on NS 35/7.5 rail, 1 closing contact, input: 24 V DC, output: TTL (5 V DC)

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width6.2 mm
Height80 mm
Depth86 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Degree of protectionIP20

Input data

Nominal input voltage UN24 V DC
Input voltage range in reference to UN0.8 ... 1.2
Switching threshold "0" signal in reference to UN< 0.4
Switching threshold "1" signal in reference to UN> 0.8
Typical input current at UN3.4 mA
Typical response time35 µs
Typical turn-off time35 µs
Operating voltage displayYellow LED
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentParallel polarity protection diode
Surge voltage protection> 33 V
Transmission frequency1 kHz

Output data

DesignationOutput data
Output nominal voltage5 V DC -10 % ... +20 %
Limiting continuous currentA TTL load (Fan out = 1)/50 mA for switching mode
Fan out1
Surge voltage protection> 8 V
Voltage drop at max. limiting continuous current< 80 mV
Output circuit3-conductor, ground-referenced
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentParallel polarity protection diode

Connection data, input side

Connection nameInput side
Connection methodPush-in connection
Stripping length8 mm
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

Connection data, output side

Connection nameOutput side
Connection methodPush-in connection
Stripping length8 mm
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

General

Test voltage input/output2.5 kVrms(50 Hz, 1 min.)
Mounting positionany
Assembly instructionsIn rows with zero spacing
Operating mode100% operating factor
Flammability rating according to UL 94V0
DesignationAir clearances and creepage distances between the power circuits
Standards/regulationsIEC 60664
EN 50178
IEC 62103
Rated surge voltage/insulation4 kV / basic insulation
Rated insulation voltage250 V DC
Degree of pollution2
Overvoltage categoryIII

Standards and Regulations

Connection in acc. with standardCUL
DesignationAir clearances and creepage distances between the power circuits
Standards/regulationsIEC 60664
EN 50178
IEC 62103
Rated insulation voltage250 V DC
Rated surge voltage/insulation4 kV / basic insulation
Degree of pollution2
Overvoltage categoryIII
Flammability rating according to UL 94V0

eCl@ss

eCl@ss 4.027371001
eCl@ss 4.127371001
eCl@ss 5.027371001
eCl@ss 5.127371001
eCl@ss 6.027371001
eCl@ss 7.027371001
eCl@ss 8.027371604
eCl@ss 9.027371604

ETIM

ETIM 4.0EC000196
ETIM 5.0EC001504

UNSPSC

UNSPSC 6.0130211916
UNSPSC 7.090139121542
UNSPSC 1139121542
UNSPSC 12.0139121542
UNSPSC 13.239121542

ETIM for 2900363 Relays (EC001504)
Feature Name Feature Value
Output voltage (EF003933) 4.5 V
Type of output voltage (EF008222) DC
Rated operation current Ie (EF001443) 0.05 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes
