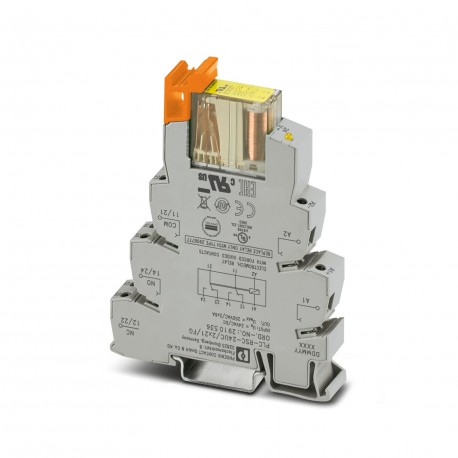

PHOENIX CONTACT PLC-RSC-24UC/2X21/FG PLC-RSC- 24UC/2X21/FG 2910536 PHOENIX CONTACT Relay Module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PLC-RSC- 24UC/2X21/FG 2910536 PHOENIX CONTACT Relay Module

PLC-RSC-24UC/2X21/FG

2910536

PHOENIX CONTACT

1 Pcs.

Relay Module PLC-INTERFACE, consisting of relay socket and plug-in safety relay with forced conduction contacts according to DIN EN 61810-3, Screw connection, 2 inverter contacts, with forced guide, Rectifier bridge, Input voltage: 24 V AC/DC

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2910536
Packing unit10 pc
NoteMade to Order (non-returnable)
GTIN4055626486871
Weight per Piece (excluding packing)82.800 g
Custom tariff number85364190
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width14 mm
Height80 mm
Depth104 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-20 °C ... 85 °C

Coil side

Nominal input voltage UN24 V AC/DC
Input voltage range in reference to UNsee diagram
Typical input current at UN30 mA
Typical response time3 ms ... 15 ms
Typical release time range3 ms ... 15 ms
Coil voltage24 V DC
Protective circuitBridge rectifier
Operating voltage displayYellow LED

Contact side

Contact type2 changeover contacts, forcibly actuated
Type of switch contactSingle contact
Contact materialAgNi
Force-guided contacts in accordance with EN 50205Type B
Maximum switching voltage250 V AC/DC
Minimum switching voltage5 V (10 mA)
Min. switching current10 mA (5 V)
Maximum inrush current6 A
Limiting continuous current6 A
Interrupting rating (ohmic load) max.144 W (24 V DC)
288 W (48 V DC)
88 W (110 V DC)
110 W (220 V DC)
1500 VA (250 V AC)
Switching capacity min.150 mW
Switching capacity3 A (24 V, DC13)
3 A (230 V, AC15)

Connection data input side

Connection nameCoil side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² ()
2x 0.5 mm² ... 1.5 mm² ()
Conductor cross section AWG26 ... 14

Connection data output side

Connection nameContact side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² ()
2x 0.5 mm² ... 1.5 mm² ()
Conductor cross section AWG26 ... 14

General

Test voltage relay winding/relay contact4 kVrms(50 Hz, 1 min.)
Test voltage PDT/PDT2.5 kVrms(50 Hz, 1 min.)
Operating mode100% operating factor
Degree of protectionIP20 (Relay base)
RT II (Relay)
Mechanical service lifeapprox. 107cycles
UL, USAUL 508
UL 508 Recognized
UL, USA/CanadacUL 508
cUL 508 Recognized
Mounting positionany
Assembly instructionsIn rows with zero spacing
B10d600000 Cycles (AC1; 250 V / 6 A; 1 NO)
900000 Cycles (AC1; 250 V / 3 A; 1 NO)
1800000 Cycles (AC1; 250 V / 1,5 A; 1 NO)
180000 Cycles (AC15; 250 V / 3 A; 1 NO)
560000 Cycles (AC15; 250 V / 2 A; 1 NO)
4600000 Cycles (AC15; 250 V / 0,75 A; 1 NO)
360000 Cycles (DC13; 24 V / 3 A; 1 NO)
740000 Cycles (DC13; 24 V / 1,5 A; 1 NO)
4200000 Cycles (DC13; 24 V / 0,75 A; 1 NO)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
