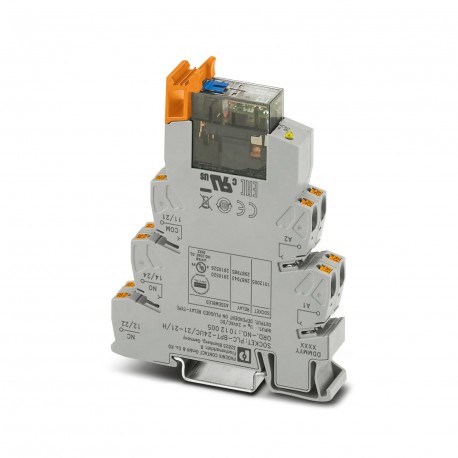

PLC-RPT- 24UC/21-21AU/MS 2910526 PHOENIX CONTACT Relay Module

PLC-RPT-24UC/21-21AU/MS

2910526

PHOENIX CONTACT

10 Pcs.

Relay Module PLC-INTERFACE, consisting of socket relay and plug-in multi-layer gold contact relay with manual operation, integrated status LED, push-in connection, 2 switched contacts, Rectifier bridge, Input voltage: 24 V AC/DC PLC-INTERFACE, consisting of a relay base and pluggable multilayer gold contact relay with manual operation, integrated status LED, Push-in connection, 2 changeover contacts, Bridge rectifier, Input voltage: 24 V AC/DC

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeRelay Module
Product familyPLC-INTERFACE
ApplicationPalm switch
Operating mode100% operating factor
Mechanical service life5x 106cycles
Data management status
Date of last data management08.07.2024
Article revision03
Insulation characteristics: Air clearances and creepage distances between the power circuits
InsulationSafe isolation, reinforced insulation
Overvoltage categoryIII
Pollution degree2
Electrical properties
Maximum power dissipation for nominal condition0.44 W
Test voltage (Winding/contact)4 kVrms(50 Hz, 1 min.)
Test voltage (Changeover contact/changeover contact)2.5 kVrms(50 Hz, 1 min.)
Air clearances and creepage distances between the power circuits
Rated insulation voltage250 V AC
Rated surge voltage6 kV
Input data
Coil side
Nominal input voltage UN24 V AC/DC
Input voltage range20.6 V AC/DC ... 33.6 V AC/DC (20 °C)
Nominal voltage (plugged-in electromechanical relay)24 V DC
Drive and functionmonostable
Drive (polarity)polarized
Typical input current at UN18 mA
Typical response time3 ms ... 15 ms
Typical release time range3 ms ... 15 ms
Protective circuitBridge rectifier; Bridge rectifier
Operating voltage displayYellow LED
Output data
Switching
Contact switching type2 changeover contacts
Type of switch contactSingle contact
Contact materialAgNi, hard gold-plated
Maximum switching voltage30 V AC
36 V DC
Minimum switching voltage12 V (1 mA)
Limiting continuous current50 mA
Maximum inrush current50 mA
Min. switching current1 mA (12 V)
Switching: when the gold layer is destroyed
Notethe following values are applicable if a gold layer is destroyed
Maximum switching voltage250 V AC/DC
Minimum switching voltage12 V
Limiting continuous current6 A
Maximum inrush current12 A (20 ms)
Min. switching current10 mA
Interrupting rating (ohmic load) max.192 W (24 V DC)
62 W (48 V DC)
42 W (60 V DC)
55 W (110 V DC)
66 W (220 V DC)
2000 VA (250 V AC)
Switching capacity1 A (24 V, DC13)
1.5 A (230 V, AC15)
Connection data
Connection methodPush-in connection
Stripping length10 mm
Conductor cross section rigid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule)
Conductor cross section AWG26 ... 14
Dimensions
Width14 mm
Height80 mm
Depth104 mm
Material specifications
Colorgray (RAL 7042)
Flammability rating according to UL 94V0 (Housing)
Environmental and real-life conditions
Ambient conditions
Degree of protection (Relay)RT II
Degree of protection (Relay base)IP20
Degree of protection (Installation location)≥ IP54
Ambient temperature (operation)-40 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Altitude≤ 2000 m
Approvals
CE
CertificateCE-compliant
UKCA
CertificateUKCA-compliant
UL, USA
IdentificationUL 508
UL 508 Recognized
UL, USA/Canada
IdentificationUL 508
UL 508 Recognized
Shipbuilding approval
CertificateTAE0000196
Corrosive gas test
IdentificationISA-S71.04. G3 Harsh Group
EN 60068-2-60
DNV GL data
TemperatureD
HumidityA
VibrationB/C
EMCB
EnclosureRequired protection according to the Rules shall be provided upon installation on board
EMC data
Electromagnetic compatibilityConformance with EMC directive
Low Voltage DirectiveConformance with Low Voltage Directive
Standards and regulations
Air clearances and creepage distances between the power circuits
Standards/regulationsIEC 60947-5-1
Mounting
Mounting typeDIN rail mounting
Assembly notein rows with zero spacing
Mounting positionany

ETIM for 2910526 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Other
Complete with socket (EF003359) Yes
With detachable clamps (EF003340) No
With LED indication (EF005950) Yes
Rated control supply voltage AC 50 Hz (EF003978) 20.6 V
Rated control supply voltage AC 60 Hz (EF003979) 20.6 V
Rated control supply voltage DC (EF003980) 20.6 V
Voltage type for actuating (EF008242) AC/DC
Drive, polarization (EF003355) Polarized
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 2
Type of switch contact (EF003358) Single contact
With forced-guided contacts (EF003357) No
Material of contact insert (EF008521) Other
Material of contact surface (EF004020) Gold
Nominal current (EF000001) 0.018 A
Degree of protection (IP) (EF005474) IP20
Width (EF000008) 14 mm
Height (EF000040) 80 mm
Depth (EF000049) 104 mm

Product Datasheet
