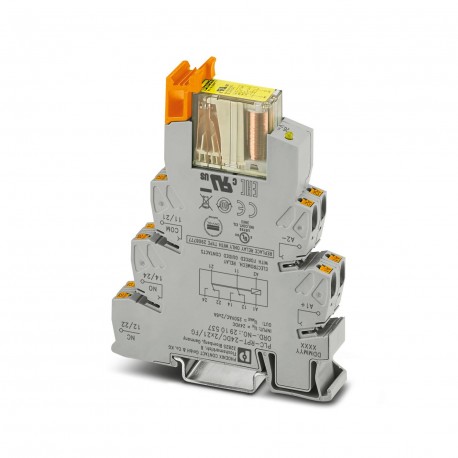

PHOENIX CONTACT PLC-RPT-24DC/2X21/FG PLC-RPT- 24DC/2X21/FG 2910537 PHOENIX CONTACT Relay Module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PLC-RPT- 24DC/2X21/FG 2910537 PHOENIX CONTACT Relay Module

PLC-RPT-24DC/2X21/FG

2910537

PHOENIX CONTACT

10 Pcs.

Relay Module PLC-INTERFACE, consisting of relay socket and plug-in safety relay with forced conduction contacts according to DIN EN 61810-3, Push-in connection, 2 inverter contacts, with forced guide, Free circulation diode, Input voltage: 24 VDC PLC-INTERFACE, consisting of a relay base and plug-in safety relay with force-guided contacts in accordance with DIN EN 61810-3, Push-in connection, 2 changeover contacts, forcibly actuated, Freewheeling diode, Input voltage: 24 V DC

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeRelay Module
Product familyPLC-INTERFACE
ApplicationForcibly guided contacts
Operating mode100% operating factor
Mechanical service lifeapprox. 107cycles
B10d600000 Cycles (AC1; 250 V / 6 A; 1 NO)
900000 Cycles (AC1; 250 V / 3 A; 1 NO)
1800000 Cycles (AC1; 250 V / 1,5 A; 1 NO)
180000 Cycles (AC15; 250 V / 3 A; 1 NO)
560000 Cycles (AC15; 250 V / 2 A; 1 NO)
4600000 Cycles (AC15; 250 V / 0,75 A; 1 NO)
360000 Cycles (DC13; 24 V / 3 A; 1 NO)
740000 Cycles (DC13; 24 V / 1,5 A; 1 NO)
4200000 Cycles (DC13; 24 V / 0,75 A; 1 NO)
Data management status
Date of last data management08.07.2024
Article revision03
Insulation characteristics: Standards/regulations
InsulationSafe isolation, reinforced insulation
Overvoltage categoryIII
Pollution degree2
Electrical properties
Maximum power dissipation for nominal condition0.72 W
Test voltage (Winding/contact)4 kVrms(50 Hz, 1 min., winding/contact)
Test voltage (Changeover contact/changeover contact)2.5 kVrms(50 Hz, 1 min., changeover contact/changeover contact)
Standards/regulations
Rated insulation voltage250 V AC
Rated surge voltage6 kV
Input data
Coil side
Nominal input voltage UN24 V DC
Input voltage range20.2 V DC ... 32.4 V DC (20 °C)
Input voltage range in reference to UNsee diagram
Nominal voltage (plugged-in electromechanical relay)24 V DC
Drive and functionmonostable
Drive (polarity)polarized
Typical input current at UN30 mA
Typical response time10 ms
Typical release time10 ms
Protective circuitFreewheeling diode
Operating voltage displayYellow LED
Output data
Switching
Contact switching type2 changeover contacts, forcibly actuated
Type of switch contactSingle contact
Contact materialAgNi
Maximum switching voltage250 V AC/DC
Minimum switching voltage5 V (10 mA)
Limiting continuous current6 A
Maximum inrush current6 A
Min. switching current10 mA (5 V)
Interrupting rating (ohmic load) max.144 W (24 V DC)
288 W (48 V DC)
88 W (110 V DC)
110 W (220 V DC)
1500 VA (250 V AC)
Switching capacity min.150 mW
Switching capacity3 A (24 V, DC13)
3 A (230 V, AC15)
Force-guided contacts in accordance with EN 61810-3Type B
Connection data
Connection methodPush-in connection
Stripping length10 mm
Conductor cross section rigid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule)
Conductor cross section AWG26 ... 14
Dimensions
Width14 mm
Height80 mm
Depth104 mm
Material specifications
Colorgray (RAL 7042)
Environmental and real-life conditions
Ambient conditions
Degree of protection (Relay)RT II (Relay)
Degree of protection (Relay base)IP20 (Relay base)
Degree of protection (Installation location)≥ IP54 (Installation location)
Ambient temperature (operation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-20 °C ... 85 °C
Altitude≤ 2000 m
Approvals
CE
CertificateCE-compliant
UKCA
CertificateUKCA-compliant
UL, USA
IdentificationUL 508
UL 508 Recognized
UL, USA/Canada
IdentificationUL 508
UL 508 Recognized
Shipbuilding approval
CertificateTAE0000196
Corrosive gas test
IdentificationISA-S71.04. G3 Harsh Group
EN 60068-2-60
DNV GL data
TemperatureD
HumidityA
VibrationB/C
EMCB
EnclosureRequired protection according to the Rules shall be provided upon installation on board
EMC data
Electromagnetic compatibilityConformance with EMC directive
Low Voltage DirectiveConformance with Low Voltage Directive
Standards and regulations
Standards/regulations
Standards/regulationsIEC 60947-5-1
DIN EN 61810-3
Mounting
Mounting typeDIN rail mounting
Assembly notein rows with zero spacing
Mounting positionany

ETIM for 2910537 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Other
Complete with socket (EF003359) Yes
With detachable clamps (EF003340) No
With LED indication (EF005950) Yes
Rated control supply voltage DC (EF003980) 20.2 V
Voltage type for actuating (EF008242) DC
Drive, polarization (EF003355) Polarized
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 2
Type of switch contact (EF003358) Single contact
With forced-guided contacts (EF003357) Yes
Material of contact insert (EF008521) Other
Material of contact surface (EF004020) Untreated
Nominal current (EF000001) 0.03 A
Degree of protection (IP) (EF005474) IP20
Width (EF000008) 14 mm
Height (EF000040) 80 mm
Depth (EF000049) 104 mm
