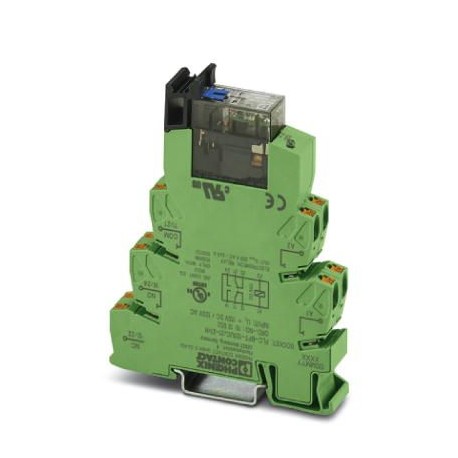

PHOENIX CONTACT PLC-RPT-120UC/21-21AU/MS PLC-RPT-120UC/21-21AU/MS 2910528 PHOENIX CONTACT Relay Module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PLC-RPT-120UC/21-21AU/MS 2910528 PHOENIX CONTACT Relay Module

PLC-RPT-120UC/21-21AU/MS

2910528

PHOENIX CONTACT

10 Pcs.

Relay Module PLC-INTERFACE, composed of socket relay and plug-in multi-layer gold contact relay with manual operation, integrated status LED, push-in connection, 2 switched contacts, Rectifier bridge, Input voltage: 120 VAC / 110 VDC

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2910528
Packing unit10 pc
NoteMade to Order (non-returnable)
GTIN4055626486796
Weight per Piece (excluding packing)64.000 g
Custom tariff number85364900
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width14 mm
Height80 mm
Depth104 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 55 °C
Ambient temperature (storage/transport)-20 °C ... 85 °C

Coil side

Nominal input voltage UN120 V AC
110 V DC
Typical input current at UN5 mA
Typical response time6 ms (110 V DC)
3 ms ... 15 ms (120 V AC)
Typical release time10 ms (110 V DC)
Typical release time range3 ms ... 15 ms (120 V AC)
Protective circuitBridge rectifier Bridge rectifier
Operating voltage displayYellow LED

Contact side

Contact type2 PDT
Type of switch contactSingle contact
Contact materialAgNi + Au
Maximum switching voltage30 V AC
36 V DC
Minimum switching voltage12 V (1 mA)
Min. switching current1 mA (12 V)
Maximum inrush current50 mA
Limiting continuous current50 mA

Contact side (with destroyed gold layer)

Notethe following values are applicable if a gold layer is destroyed
Maximum switching voltage250 V AC/DC
Minimum switching voltage12 V (10 mA)
Limiting continuous current6 A
Maximum inrush current12 A (20 ms)
Min. switching current10 mA (12 V)
Interrupting rating (ohmic load) max.192 W (24 V DC)
62 W (48 V DC)
42 W (60 V DC)
55 W (110 V DC)
66 W (220 V DC)
2000 VA (250 V AC)
Switching capacity1 A (24 V, DC13)
1.5 A (230 V, AC15)

Connection data input side

Connection nameCoil side
Connection methodPush-in connection
Stripping length8 mm
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² ()
2x 0.5 mm² ... 1 mm² ()
Conductor cross section AWG26 ... 14

Connection data output side

Connection nameContact side
Connection methodPush-in connection
Stripping length8 mm
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² ()
2x 0.5 mm² ... 1 mm² ()
Conductor cross section AWG26 ... 14

General

Test voltage relay winding/relay contact4 kVrms(50 Hz, 1 min.)
Test voltage PDT/PDT2.5 kVrms(50 Hz, 1 min.)
Operating mode100% operating factor
Degree of protectionRT II (Relay)
IP20 (Relay base)
Mechanical service life5x 106cycles
UL, USAUL 508
UL 508 Recognized
UL, USA/CanadacUL 508
cUL 508 Recognized
Mounting positionany
Assembly instructionsIn rows with zero spacing

Standards and Regulations

DesignationStandards/regulations
Standards/regulationsEN 50178
Rated insulation voltage250 V AC
Rated surge voltage6 kV
InsulationSafe isolation, reinforced insulation
Degree of pollution2
Overvoltage categoryIII
Flammability rating according to UL 94V0
UL, USAUL 508
UL 508 Recognized
UL, USA/CanadacUL 508
cUL 508 Recognized

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Articles in set

Classifications


ETIM for 2910528 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Other
Complete with socket (EF003359) Yes
With detachable clamps (EF003340) No
With LED indication (EF005950) Yes
Rated control supply voltage AC 50 Hz (EF003978) 96 V
Rated control supply voltage AC 60 Hz (EF003979) 96 V
Rated control supply voltage DC (EF003980) 93.5 V
Voltage type for actuating (EF008242) AC
Drive, polarization (EF003355) Polarized
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 2
Type of switch contact (EF003358) Single contact
With forced-guided contacts (EF003357) No
Material of contact insert (EF008521) Other
Material of contact surface (EF004020) Gold
Nominal current (EF000001) 0.005 A
Degree of protection (IP) (EF005474) IP20
Width (EF000008) 14 mm
Height (EF000040) 80 mm
Depth (EF000049) 104 mm
