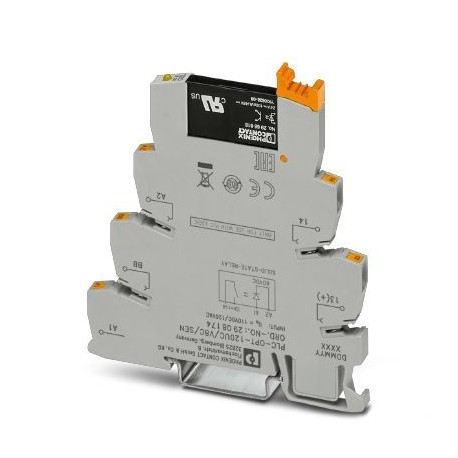

PLC-OPT-120UC/V8C/SEN 2908174 PHOENIX CONTACT Solid-state relay module

PLC-OPT-120UC/V8C/SEN

2908174

PHOENIX CONTACT

10 Pcs.

Solid-state relay module PLC-INTERFACE for input functions in PLC logic, with push-in connection and plug-in miniature solid-state relay, for rail mounting, 1 normally open contact, input: 120 V AC/110 V DC

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2908174
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
GTIN4055626287355
Weight per Piece (excluding packing)31.170 g
Custom tariff number85364190
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width6.2 mm
Height80 mm
Depth94 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 60 °C
Ambient temperature (storage/transport)-25 °C ... 70 °C

Input data

Nominal input voltage UN120 V AC (110 V DC)
110 V DC
Input voltage range in reference to UN0.8 ... 1.1
Input voltage range96 V AC ... 132 V AC
88 V DC ... 121 V DC
Switching threshold "0" signal in reference to UN≤ 0.3
Switching threshold "1" signal in reference to UN≥ 0.8
Typical input current at UN3.5 mA
Typical response time6 ms (at UN)
Typical turn-off time10 ms (at UN)
Operating voltage displayYellow LED
Type of protectionBridge rectifier
Transmission frequency10 Hz
Power dissipation for nominal condition0.42 W

Output data

Output voltage range5 V DC ... 30 V DC
Limiting continuous current3 mA
Surge voltage protection> 56 V
Voltage drop at max. limiting continuous current≤ 1 V
Output circuit2-wire, floating
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentPolarity protection diode

Connection data, input side

Connection nameInput side
Connection methodPush-in connection
Stripping length8 mm
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

General

Test voltage input/output2.5 kV (50 Hz, 1 min.)
Mounting positionany
Assembly instructionsIn rows with zero spacing
Operating mode100% operating factor
Flammability rating according to UL 94V0
DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
Degree of pollution2
Overvoltage categoryIII

Standards and Regulations

DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryIII
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2908174 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 96 V
Type of voltage (input voltage) (EF003033) AC
Output voltage (EF003933) 5 V
Type of output voltage (EF008222) DC
Rated operation current Ie (EF001443) 0.003 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
