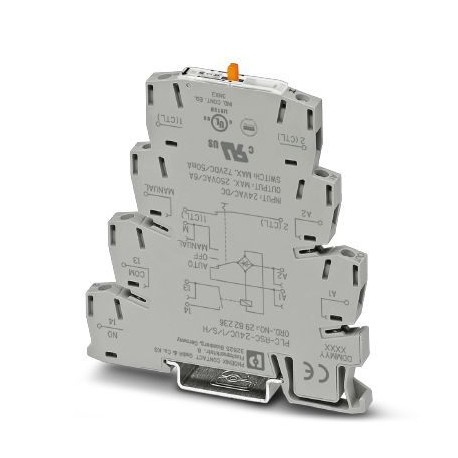

PHOENIX CONTACT PLC-RSC-24UC/ 1/S/H PLC-RSC- 24UC/ 1/S/H 2982236 PHOENIX CONTACT Switch View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PLC-RSC- 24UC/ 1/S/H 2982236 PHOENIX CONTACT Switch

PLC-RSC-24UC/ 1/S/H

2982236

PHOENIX CONTACT

1 Pcs.

Switch PLC-INTERFACE with switch (operation: manual) for "manual, zero and automatic" functions, with screw connection and integrated power contact relay, for rail mounting NS 35/7.5, 1 closing contact, input voltage 24 V AC/DC

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2982236
Packing unit10 pc
Catalog pagePage 404 (C-5-2017)
GTIN4046356093941
Weight per Piece (excluding packing)39.000 g
Custom tariff number85364190
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width6.2 mm
Height80 mm
Depth90 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-20 °C ... 85 °C

Coil side

Nominal input voltage UN24 V AC/DC
Input voltage range in reference to UNsee diagram
Typical input current at UN11 mA
Typical response time6 ms
Typical release time15 ms
Protective circuitBridge rectifier Bridge rectifier
Operating voltage displayYellow LED
Power dissipation for nominal condition0.26 W

Contact side

Contact type1 N/O contact with switch
Type of switch contactSingle contact
Contact materialAgSnO
Maximum switching voltage250 V AC/DC
Minimum switching voltage5 V (at 100 mA)
Min. switching current10 mA (at 12 V)
Maximum inrush currenton request
Limiting continuous current6 A
Interrupting rating (ohmic load) max.140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC)

Connection data 1

Connection nameCoil side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² ()
2x 0.5 mm² ... 1.5 mm² ()
Conductor cross section AWG26 ... 14

Connection data 2

Connection nameContact side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² ()
2x 0.5 mm² ... 1.5 mm² ()
Conductor cross section AWG26 ... 14

General

Operating mode100% operating factor
Degree of protectionIP20 (Relay base)
Mounting positionany
Assembly instructionsIn rows with zero spacing
Net weight (SAP)39 g

Standards and Regulations

Connection in acc. with standardCUL
DesignationAir clearances and creepage distances between the power circuits
Standards/regulationsIEC 60664
EN 50178
Rated insulation voltage250 V AC
Rated surge voltage6 kV
Degree of pollution2
Overvoltage categoryIII
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2982236 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Screw connection
Complete with socket (EF003359) No
With detachable clamps (EF003340) No
With LED indication (EF005950) Yes
Rated control supply voltage AC 50 Hz (EF003978) 19.4 V
Rated control supply voltage AC 60 Hz (EF003979) 19.4 V
Rated control supply voltage DC (EF003980) 19.4 V
Voltage type for actuating (EF008242) AC/DC
Drive, polarization (EF003355) Polarized
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 1
Number of contacts as change-over contact (EF008257) 0
Type of switch contact (EF003358) Single contact
With forced-guided contacts (EF003357) No
Material of contact insert (EF008521) Other
Material of contact surface (EF004020) Untreated
Nominal current (EF000001) 0.011 A
Degree of protection (IP) (EF005474) IP20
Width (EF000008) 6.2 mm
Height (EF000040) 80 mm
Depth (EF000049) 90 mm
