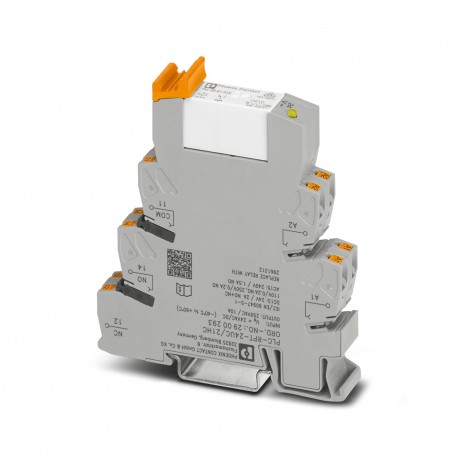

PHOENIX CONTACT PLC-RPT-24UC/21HC PLC-RPT- 24UC/21HC 2900293 PHOENIX CONTACT PLC-INTERFACE for high continuous currents, consisting of PLC-BPT.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PLC-RPT- 24UC/21HC 2900293 PHOENIX CONTACT PLC-INTERFACE for high continuous currents, consisting of PLC-BPT..

PLC-RPT-24UC/21HC

2900293

PHOENIX CONTACT

10 Pcs.

PLC-INTERFACE for high continuous currents, consisting of PLC-BPT.../21 HC basic terminal block with push-in connection and plug-in miniature relay, for mounting on DIN rail NS 35/7,5, limiting continuous current up to 10 A, 1 PDT, input voltage 24 V AC/DC PLC-INTERFACE for high constant currents, consisting of PLC-BPT.../21 HC base terminal block with push-in connection and plug-in miniature relay, for mounting on NS 35/7.5 rail, constant current limit up to 10 A, 1 switched contact, input voltage 24 V AC/DC PLC-INTERFACE, for high permanent currents consisting of PLC-BPT.../21 HC base terminal with push-in connection and miniature plug-in relay, for mounting on NS 35/7.5 mounting rail, permanent limit current up to 10 A, 1 changeover contact, voltages. 24 V AC/DC input

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Dimensions

Width14 mm
Height80 mm
Depth94 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C

Coil side

Nominal input voltage UN24 V AC/DC
Typical input current at UN17.5 mA
Typical response time8 ms
Typical release time10 ms
Protective circuitBridge rectifier Bridge rectifier
Operating voltage displayYellow LED
Power dissipation for nominal condition0.42 W

Contact side

Contact type1 PDT
Contact materialAgNi
Maximum switching voltage250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...)
Minimum switching voltage12 V DC (at 10 mA)
Min. switching current10 mA (at 12 V)
Maximum inrush current30 A (300 ms)
Limiting continuous current10 A
6 A (value applies to connections 12. If connections 12 are bridged, the normal value applies.)
Interrupting rating (ohmic load) max.240 W (at 24 V DC)
58 W (at 48 V DC)
48 W (at 60 V DC)
50 W (at 110 V DC)
80 W (at 220 V DC)
2500 VA (for 250 V AC)
Interrupting rating (ohmic load) max. bridged144 W (for 24 V DC. Value applies to connections 12. If connections 12 are bridged, the normal value applies.)
1500 VA (for 250 V AC. Value applies to connections 12. If connections 12 are bridged, the normal value applies.)
Switching capacity in acc. with DIN VDE 0660/IEC 609472 A (at 24 V, DC13)
0.2 A (at 110 V, DC13)
0.2 A (at 250 V, DC13)
6 A (at 24 V, AC15)
6 A (at 120 V, AC15)
6 A (at 250 V, AC15)

General

Operating mode100% operating factor
Degree of protectionRT II (Relay)
Mechanical service life3 x 107cycles
Flammability rating according to UL 94V0
DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
IEC 62103
Rated surge voltage/insulation6 kV / Safe isolation, increased insulation
Pollution degree2
Overvoltage categoryIII
Mounting positionany
Assembly instructionsIn rows with zero spacing

Connection data input side

Connection nameCoil side
Connection methodPush-in connection
Stripping length8 mm
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

ETIM for 2900293 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Other
Complete with socket (EF003359) Yes
With detachable clamps (EF003340) No
With LED indication (EF005950) Yes
Rated control supply voltage AC 50 Hz (EF003978) 20.6 V
Rated control supply voltage AC 60 Hz (EF003979) 20.6 V
Rated control supply voltage DC (EF003980) 20.6 V
Voltage type for actuating (EF008242) AC/DC
Drive, polarization (EF003355) Polarized
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 1
Type of switch contact (EF003358) Single contact
With forced-guided contacts (EF003357) No
Material of contact insert (EF008521) Other
Material of contact surface (EF004020) Untreated
Nominal current (EF000001) 0.0175 A
Degree of protection (IP) (EF005474) IP20
Width (EF000008) 14 mm
Height (EF000040) 80 mm
Depth (EF000049) 94 mm
