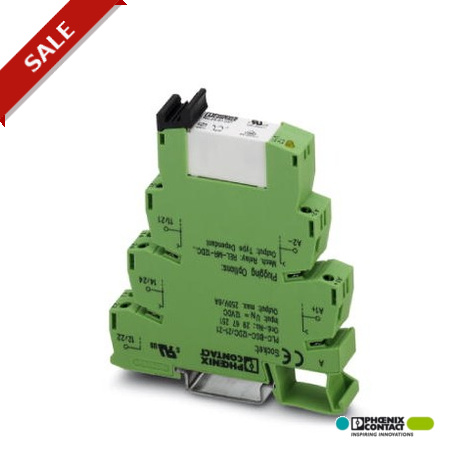

PLC-RPT- 12DC/21-21AU 2900337 PHOENIX CONTACT PLC-INTERFACE, consisting of PLC-BPT.../21-21 basic terminal b..
PLC-RPT-12DC/21-21AU
2900337
PHOENIX CONTACT
10 Pcs.
PLC-INTERFACE, consisting of PLC-BPT.../21-21 basic terminal block with push-in connection and plug-in miniature relay with multi-layer gold contact, for mounting on DIN rail NS 35/7,5, 2 PDTs, input voltage 12 V DC
Automation > Switching relay
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Width | 14 mm |
|---|---|
| Height | 80 mm |
| Depth | 94 mm |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Coil side
| Nominal input voltage UN | 12 V DC |
|---|---|
| Typical input current at UN | 33 mA |
| Typical response time | 8 ms |
| Typical release time | 10 ms |
| Protective circuit | Protection against polarity reversal Polarity protection diode |
| Free-wheeling diode Damping diode | |
| Operating voltage display | Yellow LED |
| Power dissipation for nominal condition | 0.4 W |
Contact side
| Contact type | 2 PDT |
|---|---|
| Contact material | AgNi, hard gold-plated |
| Maximum switching voltage | 30 V AC |
| 36 V DC | |
| Minimum switching voltage | 100 mV (at 10 mA) |
| Min. switching current | 1 mA (at 24 V) |
| Maximum inrush current | 50 mA |
| Limiting continuous current | 50 mA |
| Interrupting rating (ohmic load) max. | 1.2 W (at 24 V DC) |
| Note | the following values are applicable if a gold layer is destroyed |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 5 V AC/DC |
| Limiting continuous current | 6 A |
| Maximum inrush current | 15 A (300 ms) |
| Min. switching current | 10 mA |
| Interrupting rating (ohmic load) max. | 140 W (at 24 V DC) |
| 85 W (at 48 V DC) | |
| 60 W (at 60 V DC) | |
| 44 W (at 110 V DC) | |
| 60 W (at 220 V DC) | |
| 1500 VA (for 250 V AC) | |
| Switching capacity in acc. with DIN VDE 0660/IEC 60947 | 2 A (at 24 V, DC13) |
| 0.2 A (at 110 V, DC13) | |
| 0.2 A (at 250 V, DC13) | |
| 2 A (at 24 V, AC15) | |
| 2 A (at 120 V, AC15) | |
| 2 A (at 250 V, AC15) |
General
| Operating mode | 100% operating factor |
|---|---|
| Degree of protection | RT III (Relay) |
| Mechanical service life | 3 x 107cycles |
| Flammability rating according to UL 94 | V0 |
| Designation | Standards/regulations |
| Standards/regulations | IEC 60664 |
| EN 50178 | |
| IEC 62103 | |
| Rated surge voltage/insulation | 6 kV/Basic isolation |
| Pollution degree | 2 |
| Overvoltage category | III |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
Connection data input side
| Connection name | Coil side |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Other |
| Complete with socket (EF003359) | Yes |
| With detachable clamps (EF003340) | No |
| With LED indication (EF005950) | Yes |
| Rated control supply voltage DC (EF003980) | 10.3 V |
| Voltage type for actuating (EF008242) | DC |
| Drive, polarization (EF003355) | Polarized |
| Drive, switching attitude (EF003356) | Mono stable |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as change-over contact (EF008257) | 2 |
| Type of switch contact (EF003358) | Single contact |
| With forced-guided contacts (EF003357) | No |
| Material of contact insert (EF008521) | Other |
| Material of contact surface (EF004020) | Gold |
| Nominal current (EF000001) | 0.033 A |
| Degree of protection (IP) (EF005474) | IP20 |
| Width (EF000008) | 14 mm |
| Height (EF000040) | 80 mm |
| Depth (EF000049) | 94 mm |
