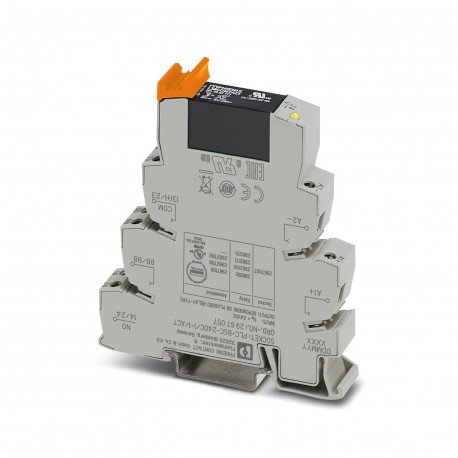

PHOENIX CONTACT PLC-OSC-24DC/230AC/ 2/ACT PLC-OSC- 24DC/230AC/ 2/ACT 2982760 PHOENIX CONTACT Solid-state relay module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PLC-OSC- 24DC/230AC/ 2/ACT 2982760 PHOENIX CONTACT Solid-state relay module

PLC-OSC-24DC/230AC/ 2/ACT

2982760

PHOENIX CONTACT

1 Pcs.

Solid-state relay module PLC-INTERFACE for output functions, consisting of PLC-BSC.../ACT base terminal block with screw connection and plug-in miniature solid-state relay, for mounting on NS 35/7.5 rail, 1 closing contact, input: 24 V DC, output: 24-253 V AC/2 A

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2982760
Packing unit10 pc
Catalog pagePage 382 (C-5-2017)
GTIN4046356342612
Weight per Piece (excluding packing)72.100 g
Custom tariff number85364190
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width14 mm
Height80 mm
Depth94 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-25 °C ... 70 °C

Input data

Nominal input voltage UN24 V DC
Input voltage range in reference to UN0.8 ... 1.2
Input voltage range19.2 V DC ... 28.8 V DC
Switching threshold "0" signal in reference to UN≤ 0.4
Switching threshold "1" signal in reference to UN≥ 0.8
Typical input current at UN9 mA
Typical response time10 ms
Typical turn-off time10 ms
Operating voltage displayYellow LED
Type of protectionReverse polarity protection
Free-wheeling diode
Protective circuit/componentPolarity protection diode
Damping diode
Transmission frequency10 Hz
Power dissipation for nominal condition0.22 W

Output data

Output nominal voltage230 V AC
Output voltage range24 V AC ... 253 V AC
Limiting continuous current2 A (see derating curve)
Maximum inrush current30 A (10 ms)
Min. load current25 mA
Leakage currenttyp. 1 mA
Surge current30 A (tp = 10 ms)
Max. load value4 A2s (tp = 10 ms, at 25 °C)
Peak offstate voltage600 V
Voltage drop at max. limiting continuous current≤ 1 V
Output circuit2-conductor floating, zero voltage switch
Type of protectionSurge protection

Connection data 1

Connection nameInput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

Connection data 2

Connection nameOutput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

General

Test voltage input/output2.5 kV (50 Hz, 1 min.)
Mounting positionsee to derating
Assembly instructionsIn rows with zero spacing
Operating mode100% operating factor
Flammability rating according to UL 94V0
DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
Degree of pollution2
Overvoltage categoryIII

Standards and Regulations

DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryIII
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Articles in set

Classifications


ETIM for 2982760 Relays (EC001504)
Feature Name Feature Value
Output voltage (EF003933) 24 V
Type of output voltage (EF008222) AC
Rated operation current Ie (EF001443) 2 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes
