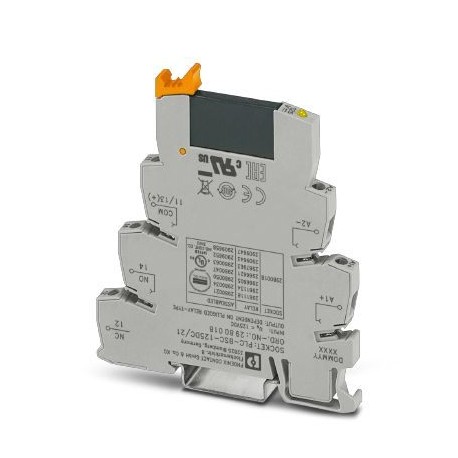

PHOENIX CONTACT PLC-OSC-125DC/ 48DC/100 PLC-OSC-125DC/ 48DC/100 2980047 PHOENIX CONTACT Solid-state relay module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PLC-OSC-125DC/ 48DC/100 2980047 PHOENIX CONTACT Solid-state relay module

PLC-OSC-125DC/ 48DC/100

2980047

PHOENIX CONTACT

1 Pcs.

Solid-state relay module PLC-INTERFACE, consisting of PLC-BSC.../21 base terminal block with screw connection and plug-in miniature solid-state relay, for installation on NS 35/7.5, 1 closing contact, input: 125 V DC, output: 3-48 V DC/100 mA

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2980047
Packing unit10 pc
Catalog pagePage 376 (C-5-2017)
GTIN4017918619060
Weight per Piece (excluding packing)32.200 g
Custom tariff number85364900
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width6.2 mm
Height80 mm
Depth94 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 60 °C
Ambient temperature (storage/transport)-25 °C ... 70 °C

Input data

Nominal input voltage UN125 V DC
Input voltage range in reference to UN0.8 ... 1.1
Input voltage range100 V DC ... 137.5 V DC
Switching threshold "0" signal in reference to UN≤ 0.4
Switching threshold "1" signal in reference to UN≥ 0.8
Typical input current at UN3 mA
Typical response time1 ms (at UN)
Typical turn-off time3 ms (at UN)
Status displayYellow LED
Transmission frequency50 Hz
Power dissipation for nominal condition0.38 W

Output data

Output voltage range3 V DC ... 48 V DC
Limiting continuous current100 mA
Voltage drop at max. limiting continuous current≤ 1 V
Output circuit2-wire, floating
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentPolarity protection diode

Connection data 1

Connection nameInput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

Connection data 2

Connection nameOutput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

General

Test voltage input/output2.5 kV (50 Hz, 1 min.)
Mounting positionany
Assembly instructionsIn rows with zero spacing
Operating mode100% operating factor
Flammability rating according to UL 94V0
DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
Degree of pollution2
Overvoltage categoryIII

Standards and Regulations

Connection in acc. with standardCUL
DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryIII
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2980047 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 100 V
Type of voltage (input voltage) (EF003033) DC
Output voltage (EF003933) 3 V
Type of output voltage (EF008222) DC
Rated operation current Ie (EF001443) 0.1 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes
