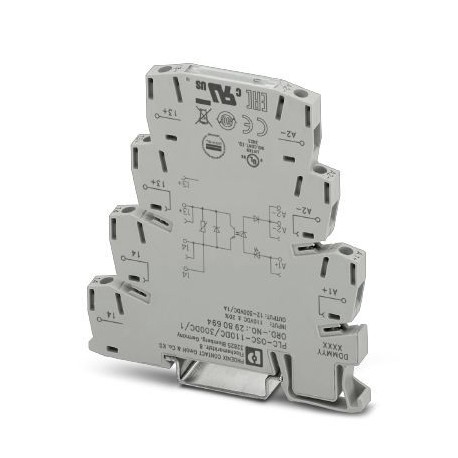

PHOENIX CONTACT PLC-OSC-110DC/300DC/ 1 PLC-OSC-110DC/300DC/ 1 2980694 PHOENIX CONTACT Solid-state relay module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PLC-OSC-110DC/300DC/ 1 2980694 PHOENIX CONTACT Solid-state relay module

PLC-OSC-110DC/300DC/ 1

2980694

PHOENIX CONTACT

1 Pcs.

Solid-state relay module PLC INTERFACE, integrated solid-state relay, screw connection, for installation on symmetrical rail NS 35/7.5, input: 110 V DC, output: 12-300 V DC/1 A

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2980694
Packing unit10 pc
Catalog pagePage 406 (C-5-2017)
GTIN4046356051439
Weight per Piece (excluding packing)34.310 g
Custom tariff number85364900
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width6.2 mm
Height80 mm
Depth86 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C

Input data

Nominal input voltage UN110 V DC
Input voltage range in reference to UN0.8 ... 1.2
Input voltage range88 V DC ... 132 V DC
Switching threshold "0" signal in reference to UN≤ 0.4
Switching threshold "1" signal in reference to UN≥ 0.8
Typical input current at UN5 mA
Typical response time0.4 ms
Typical turn-off time0.7 ms
Operating voltage displayYellow LED
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentPolarity protection diode
Varistor
Transmission frequency50 Hz
Power dissipation for nominal condition0.55 W

Output data

DesignationOutput data
Output voltage range12 V DC ... 300 V DC (Partition plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal points in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...)
Limiting continuous current1 A (see derating curve)
Voltage drop at max. limiting continuous current< 500 mV
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentPolarity protection diode
Varistor

Connection data 1

Connection nameInput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

Connection data 2

Connection nameOutput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

General

Mounting positionany
Assembly instructionsIn rows with zero spacing
Operating mode100% operating factor
Flammability rating according to UL 94V0
DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
Degree of pollution2
Overvoltage categoryIII

Standards and Regulations

Connection in acc. with standardCUL
DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
Rated insulation voltage300 V
Rated surge voltage2.5 kV
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryIII
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2980694 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 88 V
Type of voltage (input voltage) (EF003033) DC
Output voltage (EF003933) 12 V
Type of output voltage (EF008222) DC
Rated operation current Ie (EF001443) 1 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes
