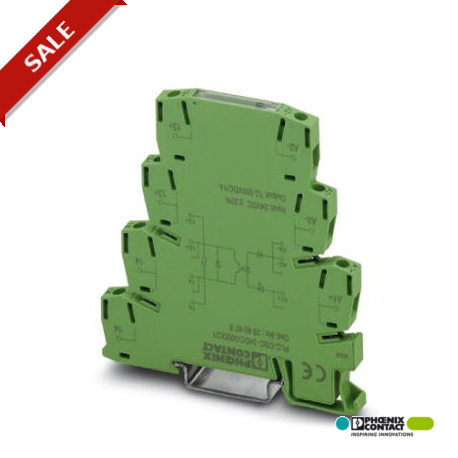

PLC-OPT- 60DC/300DC/1 2900384 PHOENIX CONTACT PLC-INTERFACE, integrated solid-state relay, with Push-in conn..

PLC-OPT-60DC/300DC/1

2900384

PHOENIX CONTACT

1 Pcs.

PLC-INTERFACE, integrated solid-state relay, with Push-in connection, for mounting on NS 35/7,5 DIN rails, input: 60 V DC, output: 12 - 300 V DC/1 A PLC INTERFACE, integrated solid-state relay, with push-in connection, for symmetrical rail mounting NS 35/7.5, input: 60 V DC, output: 12-300 V DC/1 A

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width6.2 mm
Height80 mm
Depth86 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C

Input data

Nominal input voltage UN60 V DC
Input voltage range in reference to UN0.8 ... 1.2
Input voltage range48 V DC ... 60 V DC
Switching threshold "0" signal in reference to UN≤ 0.4
Switching threshold "1" signal in reference to UN≥ 0.8
Typical input current at UN5 mA
Typical response time0.3 ms
Typical turn-off time0.7 ms
Operating voltage displayYellow LED
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentPolarity protection diode
Varistor
Transmission frequency50 Hz

Output data

DesignationOutput data
Output voltage range12 V DC ... 300 V DC (Partition plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal points in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...)
Limiting continuous current1 A (see derating curve)
Voltage drop at max. limiting continuous current< 500 mV
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentPolarity protection diode
Varistor

Connection data, input side

Connection nameInput side
Connection methodPush-in connection
Stripping length8 mm
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

Connection data, output side

Connection nameOutput side
Connection methodPush-in connection
Stripping length8 mm
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

General

Mounting positionany
Assembly instructionsIn rows with zero spacing
Operating mode100% operating factor
Flammability rating according to UL 94V0
DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
IEC 62103
Rated surge voltage/insulation4 kV / basic insulation
Rated insulation voltage300 V
Degree of pollution2
Overvoltage categoryIII

Standards and Regulations

Connection in acc. with standardCUL
DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
IEC 62103
Rated insulation voltage300 V
Rated surge voltage/insulation4 kV / basic insulation
Degree of pollution2
Overvoltage categoryIII
Flammability rating according to UL 94V0

eCl@ss

eCl@ss 4.027371102
eCl@ss 4.127371102
eCl@ss 5.027371001
eCl@ss 5.127371001
eCl@ss 6.027371001
eCl@ss 7.027371001
eCl@ss 8.027371604
eCl@ss 9.027371604

ETIM

ETIM 2.0EC001504
ETIM 3.0EC001504
ETIM 4.0EC000196
ETIM 5.0EC001504

UNSPSC

UNSPSC 6.0130211916
UNSPSC 7.090139121542
UNSPSC 1139121542
UNSPSC 12.0139121542
UNSPSC 13.239121542

ETIM for 2900384 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 48 V
Type of voltage (input voltage) (EF003033) DC
Output voltage (EF003933) 12 V
Type of output voltage (EF008222) DC
Rated operation current Ie (EF001443) 1 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
