View larger
Images are for illustrative purposes only. Please refer to data sheet for details

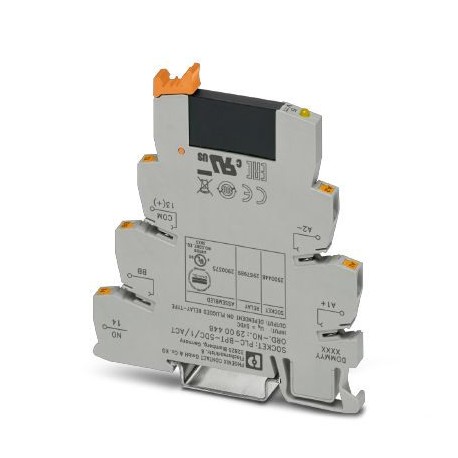

PLC-OPT- 5DC/ 24DC/2/ACT 2900375 PHOENIX CONTACT Solid-state relay module
PLC-OPT-5DC/ 24DC/2/ACT
2900375
PHOENIX CONTACT
1 Pcs.
Solid-state relay module
PLC-INTERFACE for output functions, consisting of PLC-BPT.../ACT base terminal block with push-in connection and plug-in miniature solid-state relay, for installation on NS 35/7.5 rail, 1 closing contact, input: 5 V DC, output: 3-33 V DC/3 A
Automation > Optocoupler
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2900375 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 380 (C-5-2017) |
| GTIN | 4046356506861 |
| Weight per Piece (excluding packing) | 31.270 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Input data
| Nominal input voltage UN | 5 V DC |
|---|---|
| Input voltage range in reference to UN | 0.8 ... 1.2 |
| Input voltage range | 4 V DC ... 6 V DC |
| Switching threshold "0" signal in reference to UN | ≤ 0.25 |
| Switching threshold "1" signal in reference to UN | ≥ 0.8 |
| Typical input current at UN | 9.5 mA |
| Typical response time | 20 µs (at UN) |
| Typical turn-off time | 300 µs (at UN) |
| Operating voltage display | Yellow LED |
| Type of protection | Reverse polarity protection |
| Free-wheeling diode | |
| Protective circuit/component | Polarity protection diode |
| Damping diode | |
| Transmission frequency | 300 Hz |
| Power dissipation for nominal condition | 0.05 W |
Output data
| Output voltage range | 3 V DC ... 33 V DC |
|---|---|
| Limiting continuous current | 3 A (see derating curve) |
| Maximum inrush current | 15 A (10 ms) |
| Voltage drop at max. limiting continuous current | ≤ 200 mV |
| Output circuit | 2-wire, floating |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Protective circuit/component | Polarity protection diode |
Connection data 1
| Connection name | Input side |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
Connection data 2
| Connection name | Output side |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
General
| Test voltage input/output | 2.5 kV (50 Hz, 1 min.) |
|---|---|
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Operating mode | 100% operating factor |
| Flammability rating according to UL 94 | V0 |
| Degree of pollution | 2 |
| Overvoltage category | III |
| Designation | Standards/regulations |
| Standards/regulations | IEC 60664 |
| IEC 60664A | |
| DIN VDE 0110 |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Designation | Standards/regulations |
| Standards/regulations | IEC 60664 |
| IEC 60664A | |
| DIN VDE 0110 | |
| Insulation | Basic insulation |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027371001eCl@ss 5.127371000eCl@ss 6.027371600eCl@ss 7.027371604eCl@ss 8.027371604eCl@ss 9.027371604
| Feature Name | Feature Value |
|---|---|
| Input voltage (EF003840) | 4 V |
| Type of voltage (input voltage) (EF003033) | DC |
| Output voltage (EF003933) | 3 V |
| Type of output voltage (EF008222) | DC |
| Rated operation current Ie (EF001443) | 3 A |
| Type of digital output (EF003601) | Electronic |
| With LED indication (EF005950) | Yes |
