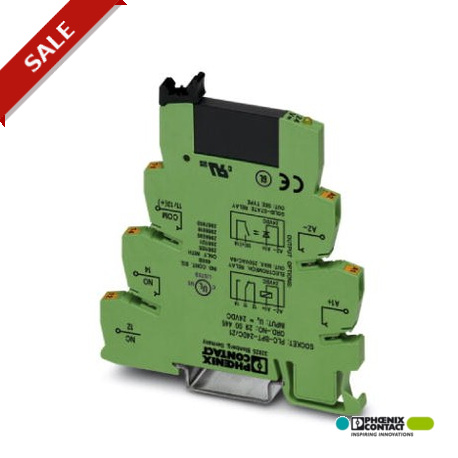

PLC-OPT- 48DC/230AC/1 2900370 PHOENIX CONTACT PLC-INTERFACE, consisting of PLC-BPT.../21 basic terminal bloc..
PLC-OPT-48DC/230AC/1
2900370
PHOENIX CONTACT
1 Pcs.
PLC-INTERFACE, consisting of PLC-BPT.../21 basic terminal block with push-in connection and plug-in miniature solid-state relay, for mounting on DIN rail NS 35/7,5, 1 N/O contact, input: 48 V DC, output: 24 - 253 V AC/0.75 A
PLC-INTERFACE, consisting of PLC-BPT.../21 base terminal block with push-in connection and plug-in miniature solid-state relay, for installation on NS 35/7.5 rail, 1 closing contact, input: 48 V DC, output: 24-253 V AC/ 0.75 A
Automation > Optocoupler
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Width | 6.2 mm |
|---|---|
| Height | 80 mm |
| Depth | 94 mm |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Input data
| Nominal input voltage UN | 48 V DC |
|---|---|
| Input voltage range in reference to UN | 0.8 ... 1.2 |
| Switching threshold "0" signal in reference to UN | ≤ 0.25 |
| Switching threshold "1" signal in reference to UN | ≥ 0.8 |
| Typical input current at UN | 9 mA |
| Typical response time | 10 ms (at UN) |
| Typical turn-off time | 10 ms (at UN) |
| Operating voltage display | Yellow LED |
| Type of protection | Protection against polarity reversal |
| Free-wheeling diode | |
| Protective circuit/component | Polarity protection diode |
| Damping diode | |
| Transmission frequency | 10 Hz |
Output data
| Output voltage range | 24 V AC ... 253 V AC |
|---|---|
| Limiting continuous current | 0.75 A (see derating curve) |
| Maximum inrush current | 30 A (10 ms) |
| Min. load current | 10 mA |
| Leakage current | < 1 mA (in off state) |
| Max. load value | 4.5 A2s |
| Voltage drop at max. limiting continuous current | < 1 V |
| Output circuit | 2-wire, floating |
| Type of protection | RCV circuit |
Connection data, input side
| Connection name | Input side |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
General
| Test voltage input/output | 2.5 kV (50 Hz, 1 min.) |
|---|---|
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Operating mode | 100% operating factor |
| Flammability rating according to UL 94 | V0 |
| Pollution degree | 2 |
| Overvoltage category | III |
| Feature Name | Feature Value |
|---|---|
| Input voltage (EF003840) | 38.4 V |
| Type of voltage (input voltage) (EF003033) | DC |
| Output voltage (EF003933) | 24 V |
| Type of output voltage (EF008222) | AC |
| Rated operation current Ie (EF001443) | 0.75 A |
| Type of digital output (EF003601) | Electronic |
| With LED indication (EF005950) | Yes |
