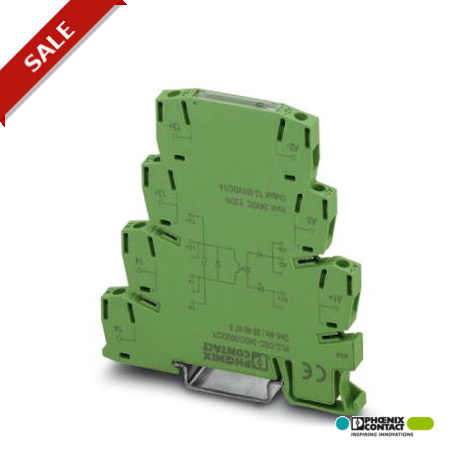

PLC-OPT-120AC/300DC/1 2900388 PHOENIX CONTACT PLC-INTERFACE, integrated solid-state relay, with Push-in conn..

PLC-OPT-120AC/300DC/1

2900388

PHOENIX CONTACT

1 Pcs.

PLC-INTERFACE, integrated solid-state relay, with Push-in connection, for mounting on NS 35/7,5 DIN rails, input: 120 V AC, output: 12 - 300 V DC/1 A INTERFACE PLC, integrated solid-state relay, with push-in connection, for symmetrical rail mounting NS 35/7.5, input: 120 V AC, output: 12-300 V DC/1 A

Automation > Optocoupler
Industrial Relays
