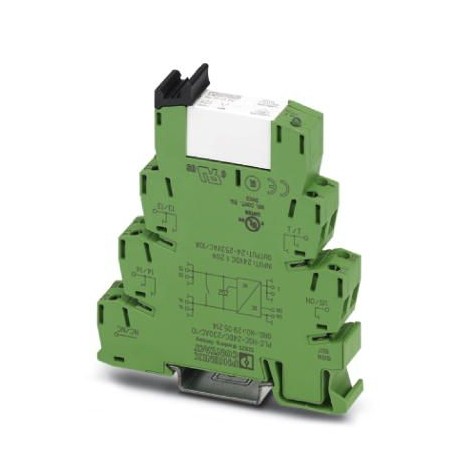

PHOENIX CONTACT PLC-HSC-24DC/230AC/10 PLC-HSC-24DC/230AC/10 2905214 PHOENIX CONTACT Solid-state relays View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PLC-HSC-24DC/230AC/10 2905214 PHOENIX CONTACT Solid-state relays

PLC-HSC-24DC/230AC/10

2905214

PHOENIX CONTACT

1 Pcs.

Solid-state relays PLC-INTERFACE, hybrid solid-state relay incl. bypass relay with screw connection, for rail mounting NS 35/7.5, input: 24 V DC, output: 24 V AC-253 V AC/10 A

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2905214
Packing unit1 pc
Catalog pagePage 409 (C-5-2017)
GTIN4046356927567
Weight per Piece (excluding packing)63.060 g
Custom tariff number85364190
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width14 mm
Height80 mm
Depth94 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Degree of protectionIP20

Input data

Rated control circuit supply voltage US24 V DC
Input voltage range19.2 V DC ... 28.8 V DC
Rated control supply current IS14 mA (Input low, output low)
19 mA (Input high, output high)
Rated actuating voltage UC24 V DC
"0" signal switching threshold in reference to UC< 0.4
"1" signal switching threshold in reference to UC> 0.8
Typical response time30 ms
Typical turn-off time20 ms
Status displayYellow LED
Type of protectionReverse polarity protection
Surge protection
Surge voltage protection> 33 V DC
Transmission frequency1 Hz
Power dissipation for nominal condition0.16 W

Output data

DesignationAC hybrid output
Output voltage range24 V AC ... 253 V AC (50/60 Hz)
Limiting continuous current10 A (see derating curve)
Min. load current100 mA
Leakage current< 1 mA
Surge current250 A (tp = 20 ms, at 25°C)
Max. load value350 A2s (tp = 10 ms, at 25 °C)
Surge voltage protection> 275 V
Output circuit2-wire, floating
Type of protectionRCV circuit

Connection data, input side

Connection nameInput side
Connection methodScrew connection
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

Connection data, output side

Connection nameOutput side
Connection methodScrew connection
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

General

Mounting positionany
Assembly instructionsSee derating curve
Operating mode100% operating factor
DesignationAir clearances and creepage distances between the power circuits
Standards/regulationsDIN EN 50178
Degree of pollution2
Overvoltage categoryIII

Standards and Regulations

DesignationAir clearances and creepage distances between the power circuits
Standards/regulationsDIN EN 50178
Rated insulation voltage260 V AC
Rated surge voltage6 kV
Insulationsafe isolation
Degree of pollution2
Overvoltage categoryIII

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2905214 Relays (EC001504)
Feature Name Feature Value
Output voltage (EF003933) 24 V
Type of output voltage (EF008222) AC
Rated operation current Ie (EF001443) 10 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes
