PLC-OSC-24DC/ 24DC/ 2/C1D2

5603260

PHOENIX CONTACT

1 Pcs.

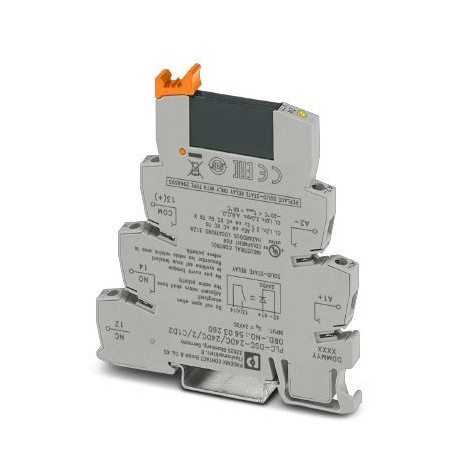

Optocoupler PLC-INTERFACE, consisting of a base terminal block for mounting on a rail with screw connection and plug-in miniature solid-state relay, input: 24VDC, output: 3 ... 33VDC/3A, UL/CUL: approved for use in Ex zone class I, div. 2

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey5603260
Packing unit10 pc
Catalog pagePage 459 (C-5-2017)
GTIN4046356686129
Weight per Piece (excluding packing)38.000 g
Custom tariff number85364190
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width6.2 mm
Height80 mm
Depth94 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C

Input data

Nominal input voltage UN24 V DC
Input voltage range in reference to UN0.8 ... 1.2
Input voltage range19.2 V DC ... 28.8 V DC
Switching threshold "0" signal in reference to UN≤ 0.4
Switching threshold "1" signal in reference to UN≥ 0.8
Typical input current at UN8.5 mA
Typical response time20 µs (at UN)
Typical turn-off time300 µs (at UN)
Operating voltage displayYellow LED
Type of protectionReverse polarity protection
Free-wheeling diode
Protective circuit/componentPolarity protection diode
Damping diode
Transmission frequency300 Hz
Power dissipation for nominal condition0.2 W

Output data

Output voltage range3 V DC ... 33 V DC
Limiting continuous current3 A
Maximum inrush current15 A (10 ms)
Voltage drop at max. limiting continuous current≤ 200 mV
Output circuit2-wire, floating
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentPolarity protection diode

Connection data, input side

Connection nameInput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM 3
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

Connection data, output side

Connection nameOutput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM 3
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

General

Test voltage input/output2.5 kV (50 Hz, 1 min.)
Mounting positionany
Assembly instructionsIn rows with zero spacing
Operating mode100% operating factor
Flammability rating according to UL 94V0
DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
Degree of pollution2
Overvoltage categoryIII
UL, USAClass I, Zone 2, AEx nA nC IIC T6
UL, USA/CanadaClass I, Div. 2, Groups A, B, C, D
UL, CanadaClass I, Zone 2, Ex nA nC IIC Gc T6 X

Standards and Regulations

DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryIII
Flammability rating according to UL 94V0
ConformanceCE-compliant
UL, USAClass I, Zone 2, AEx nA nC IIC T6
UL, USA/CanadaClass I, Div. 2, Groups A, B, C, D
UL, CanadaClass I, Zone 2, Ex nA nC IIC Gc T6 X

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 5603260 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 19.2 V
Type of voltage (input voltage) (EF003033) DC
Output voltage (EF003933) 3 V
Type of output voltage (EF008222) DC
Rated operation current Ie (EF001443) 3 A
