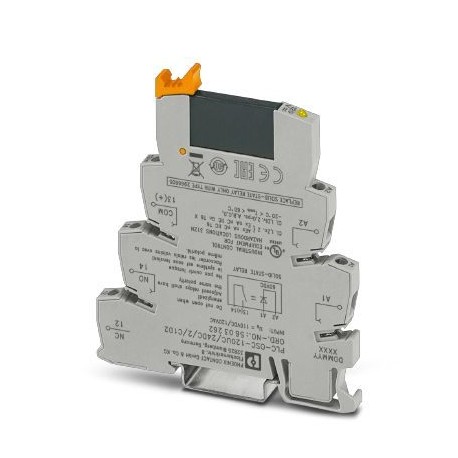

PHOENIX CONTACT PLC-OSC-120UC/ 24DC/ 2/C1D2 PLC-OSC-120UC/ 24DC/ 2/C1D2 5603262 PHOENIX CONTACT Optocoupler View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PLC-OSC-120UC/ 24DC/ 2/C1D2 5603262 PHOENIX CONTACT Optocoupler

PLC-OSC-120UC/ 24DC/ 2/C1D2

5603262

PHOENIX CONTACT

1 Pcs.

Optocoupler PLC-INTERFACE, consisting of a rail-mounted base terminal block with screw connection and plug-in miniature solid-state relay, input: 120 V AC/110 V DC, output: 3-33 V DC/3 A, UL/cUL: approved for use in the Ex zone class I, div. 2

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey5603262
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 459 (C-5-2017)
GTIN4046356679831
Weight per Piece (excluding packing)38.670 g
Custom tariff number85364900
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width6.2 mm
Height80 mm
Depth94 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C

Input data

Nominal input voltage UN120 V AC
110 V DC
Input voltage range in reference to UN0.9 ... 1.1
Input voltage range108 V AC ... 132 V AC
99 V DC ... 121 V DC
Switching threshold "0" signal in reference to UN≤ 0.3
Switching threshold "1" signal in reference to UN≥ 0.8
Typical input current at UN3.5 mA
Typical response time3.5 ms (at UN)
Typical turn-off time7 ms (at UN)
Operating voltage displayYellow LED
Type of protectionBridge rectifier
Protective circuit/componentBridge rectifier
Transmission frequency10 Hz
Power dissipation for nominal condition0.42 W

Output data

Output voltage range3 V DC ... 33 V DC
Limiting continuous current3 A
Maximum inrush current15 A (10 ms)
Voltage drop at max. limiting continuous current≤ 200 mV
Output circuit2-wire, floating
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentPolarity protection diode

Connection data, input side

Connection nameInput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM 3
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

Connection data, output side

Connection nameOutput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM 3
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

General

Test voltage input/output2.5 kV (50 Hz, 1 min.)
Mounting positionany
Assembly instructionsIn rows with zero spacing
Operating mode100% operating factor
Flammability rating according to UL 94V0
DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
Degree of pollution2
Overvoltage categoryIII
UL, USAClass I, Zone 2, AEx nA nC IIC T6
UL, USA/CanadaClass I, Div. 2, Groups A, B, C, D
UL, CanadaClass I, Zone 2, Ex nA nC IIC Gc T6 X

Standards and Regulations

DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryIII
Flammability rating according to UL 94V0
ConformanceCE-compliant
UL, USAClass I, Zone 2, AEx nA nC IIC T6
UL, USA/CanadaClass I, Div. 2, Groups A, B, C, D
UL, CanadaClass I, Zone 2, Ex nA nC IIC Gc T6 X

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 5603262 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 108 V
Type of voltage (input voltage) (EF003033) AC
Output voltage (EF003933) 3 V
Type of output voltage (EF008222) DC
Rated operation current Ie (EF001443) 3 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes
