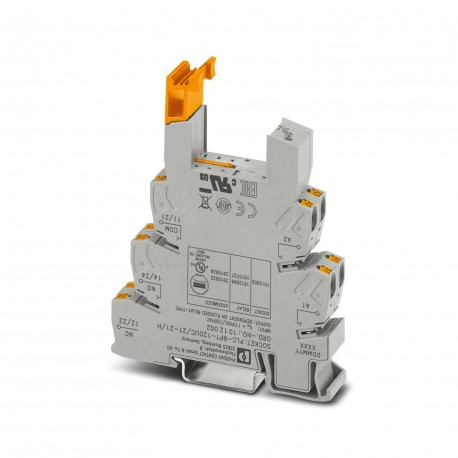

PHOENIX CONTACT PLC-BPT-120UC/21-21/H PLC-BPT-120UC/21-21/H 1012002 PHOENIX CONTACT Relay base View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PLC-BPT-120UC/21-21/H 1012002 PHOENIX CONTACT Relay base

PLC-BPT-120UC/21-21/H

1012002

PHOENIX CONTACT

1 Pcs.

Relay base 14 mm PLC base terminal without relay equipment, for mounting on NS 35/7.5 rail, Push-in connection, 2 switched contacts, Input voltage 120 V AC/DC 14 mm PLC basic terminal block without relay, for mounting on DIN rail NS 35/7,5, Push-in connection, 2 changeover contacts, Input voltage 120 V AC/DC

Automation > Relay socket
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeRelay socket
Product familyPLC-INTERFACE
ApplicationUniversal
Operating mode100% operating factor
Data management status
Article revision02
Input data
Nominal input voltage UN120 V AC/DC
Protective circuitBridge rectifier
Nominal input voltage UN120 V AC/DC
Connection data
Connection methodPush-in connection
Stripping length10 mm
Conductor cross section rigid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule)
Conductor cross section AWG26 ... 14
Signaling
Status displayLED
Dimensions
Width14 mm
Height80 mm
Depth104 mm
Material specifications
Colorgray (RAL 7042)
Flammability rating according to UL 94V0 (Housing)
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Approvals
CE
CertificateCE-compliant
UKCA
CertificateUKCA-compliant
Shipbuilding approval
CertificateTAE0000196
Corrosive gas test
IdentificationISA-S71.04. G3 Harsh Group
EN 60068-2-60
DNV GL data
TemperatureD
HumidityA
VibrationB/C
EMCB
EnclosureRequired protection according to the Rules shall be provided upon installation on board
EMC data
Electromagnetic compatibilityConformance with EMC directive
Low Voltage DirectiveConformance with Low Voltage Directive
Mounting
Mounting typeDIN rail mounting
Assembly notein rows with zero spacing
Mounting positionany
