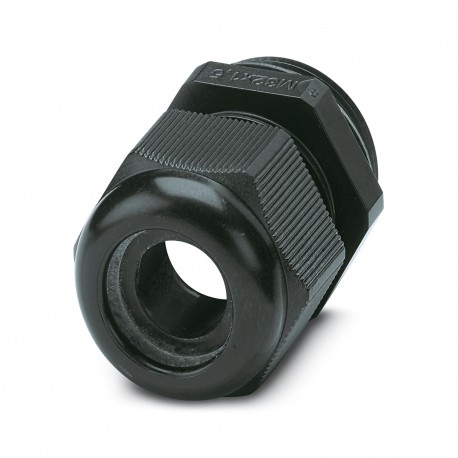

PHOENIX CONTACT HC-K-KV-M40(16-28)BK HC-K-KV-M40(16-28)BK 1407674 PHOENIX CONTACT Cable gland View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-K-KV-M40(16-28)BK 1407674 PHOENIX CONTACT Cable gland

HC-K-KV-M40(16-28)BK

1407674

PHOENIX CONTACT

10 Pcs.

Cable gland Plastic screw connection up to 5 bar, thread length: 10 mm, cable diameter: 16 - 28 mm, WAF 46, screw connection: M40

Cables > Cable gland
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeCable screw gland
No. of conductors1
Type of the screw connectionM40
Shieldedno
Dimensions
Dimensional drawingisizxkbwmp.jpg
Length41 mm
Length of the connecting thread10 mm
Wrench size, union nut46 mm
Wrench size, support46 mm
Hexagon angular dimension51 mm
Thread type connection sideM40 x 1.5
Thread pitch1.5 mm
Connection data
Tightening torque7.5 Nm (Union nut)
7.5 Nm (Support sleeve)
Material specifications
Colorblack (RAL 9005)
Flammability rating according to UL 94V2
Seal materialCR/NBR
TPE
Material for screw connectionPA
Cable/line
External cable diameter Cable 116 mm ... 28 mm
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP68 (up to 5 bar)
Ambient temperature (operation)-20 °C ... 100 °C
