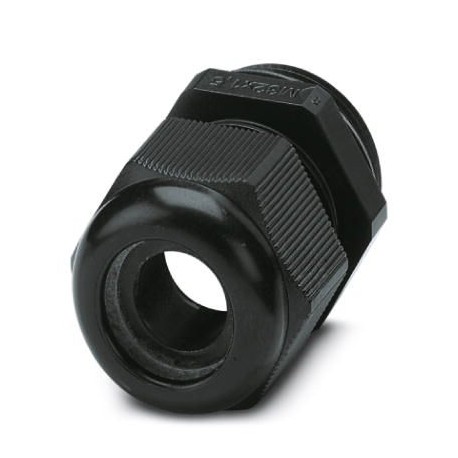

HC-K-KV-M32(12-21)BK 1407673 PHOENIX CONTACT Cable gland
HC-K-KV-M32(12-21)BK
1407673
PHOENIX CONTACT
10 Pcs.
Cable gland
Cables > Cable gland
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1407673 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 218 (NTK-2014) |
| GTIN | 4046356776417 |
| Weight per Piece (excluding packing) | 28.000 g |
| Custom tariff number | 39269097 |
| Country of origin | DE (Germany) |
Dimensions
| Length | 40 mm |
|---|---|
| Wrench size, union nut | 36 mm |
| Wrench size, support | 36 mm |
| Hexagon angular dimension | 40 mm |
| Length of the connecting thread | 10 mm |
| External cable diameter | 12 mm ... 21 mm |
Ambient conditions
| Degree of protection | IP68 (up to 5 bar) |
|---|---|
| Ambient temperature (operation) | -20 °C ... 100 °C |
General
| Type of the screw connection | M32 |
|---|---|
| No. of conductors | 1 |
| Material | PA |
| Cable gland material | PA |
| Sealing material | CR/NBR (Cable seal sealing ring, outer part) |
| Flammability rating according to UL 94 | V2 |
| Shielded | no |
| Thread type connection side | M32 x 1.5 |
| Thread type on connection side | M32 |
| Torque | 7.5 Nm (Union nut) |
| 7.5 Nm (Support sleeve) | |
| Color | jet black RAL 9005 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
