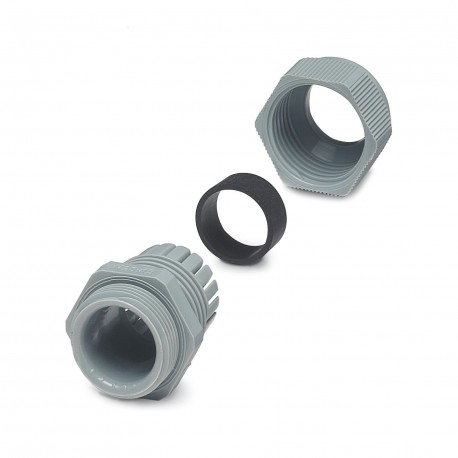

PHOENIX CONTACT HC-K-KV-M32(15-21) HC-K-KV-M32(15-21) 1690642 PHOENIX CONTACT Plastic screw connection up to 5 bar, thread length: 10 mm, cable.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-K-KV-M32(15-21) 1690642 PHOENIX CONTACT Plastic screw connection up to 5 bar, thread length: 10 mm, cable..

HC-K-KV-M32(15-21)

1690642

PHOENIX CONTACT

100 Pcs.

Plastic screw connection up to 5 bar, thread length: 10 mm, cable diameter: 15 - 21 mm, WAF 36, screw connection: M32 Plastic cable glands up to 5 bar, thread length: 10 mm, cable diameter: 15 - 21 mm, width between sides 36, cable gland: M32

Cables > Cable gland
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Item Properties
Product TypeCable glands
Number of drivers1
Screwdriving TypeM32
ShieldedNo
Dimensions
Dimension Schemezllygjdxnf.jpg
Longitude50 mm
Connection thread length10 mm
Width Between Faces - Union Nut36 mm
Wrench Width Tubing36 mm
Measurement between hexagon vertices40 mm
Thread type connection sideM32 x 1.5
Thread pitch1.5 mm
Connection data
Tightening torque7.5 Nm (Nut Joint)
7.5 Nm (Clamping Sleeve)
Material Data
Coloursilver grey (RAL 7001)
Flammability class according to UL 94V2
Material Gasket Cable JointNeoprene
Screw connection materialPA
Cable/Line
Cable Outer Diameter Cable 115 mm ... 21 mm
Environmental and life-life conditions
Environmental conditions
Protection IndexIP68 (up to 5 bar)
Ambient Temperature (Service)-20 °C ... 100 °C
