View larger
Images are for illustrative purposes only. Please refer to data sheet for details

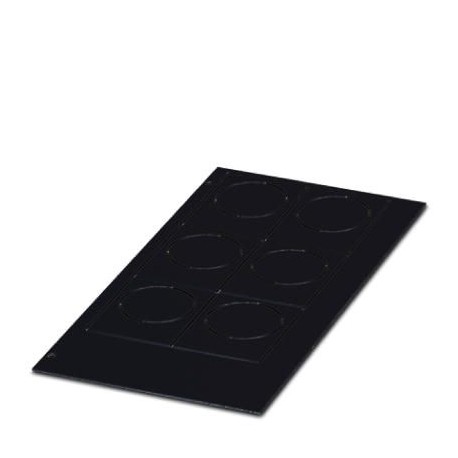

EMLP 32 (38X14) BK CUS 0824372 PHOENIX CONTACT Plastic label with drill hole
EMLP 32 (38X14) BK CUS
0824372
PHOENIX CONTACT
1 Pcs.
Plastic label with drill hole
Plastic label with hole, available: per card, black, labelled according to customer specifications, mounting type: glued, usable area: 38 x 14 mm, Number of individual indexes: 6
Automation > Labelling for terminal block
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0824372 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 295 (C-5-2013) |
| GTIN | 4046356352482 |
| Weight per Piece (excluding packing) | 21.690 g |
| Custom tariff number | 49119900 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 80 °C |
|---|---|
| Recommended storage conditions | 20°C/50% relative humidity. Storage in the original packaging is recommended. |
General
| Color | black |
|---|---|
| Components | free from silicone and halogen |
| Material | TRANSPLY-ABS |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 6 |
| Number of individual labels per row | 2 |
| Adhesive | Acrylic |
| Printability | Plotter |
| Engraving | |
| Device | 5144615 CMS-P1-PLOTTER |
| 5145546 P1 ENGRAVING UNIT | |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Test duration | 96 h |
| Wipe resistance test result | Test passed |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Test duration | 96 h |
| Salt spray testing result | Test passed |
| Alternating condensation climate with SO2 test specification | DIN 50018:2013-05 |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
| Condensation test result | Test passed |
| Adhesive strength | 50 µm |
| Marking mounting type | adhesive |
