View larger
Images are for illustrative purposes only. Please refer to data sheet for details

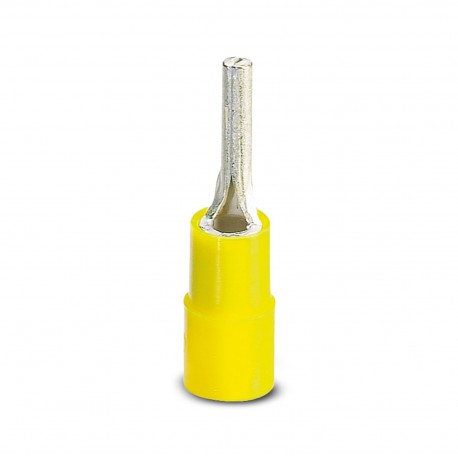

C-PCI 6/2,7 3240068 PHOENIX CONTACT Cable lug
C-PCI 6/2,7
3240068
PHOENIX CONTACT
50 Pcs.
Cable lug
Male cable lug, yellow, 4 - 6 mm², L1=12 mm
Pin cable lug, yellow, 4 - 6 mm2, L1=12 mm
Automation > Solderless copper terminals for copper conductors
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Connector |
| Data management status | |
| Article revision | 00 |
Electrical properties
| Fuse | yes |
Dimensions
| Dimensional drawing |  |
| Sleeve length | 27.5 mm |
| Length of the insulating material sleeve | 14 mm |
| Length contact range | 13.5 mm |
| Maximum stripping length | 9 mm |
| Min. material thickness | 0.8 mm |
| Inner dimensions of the insulating collar | 6.6 mm |
| Internal dimensions | |
| Internal diameter | 2.7 mm |
Material specifications
| Color | yellow (RAL 1018) |
| Material | Copper |
| Flammability rating according to UL 94 | V2 |
| Coating | tin-plated |
| Insulating material | PA |
| Components | halogen-free |
Mechanical properties
| Technical data | |
| Sleeve length | 27.5 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 105 °C |
| Feature Name | Feature Value |
|---|---|
| Flange shape (EF001339) | Pin shape |
| Nominal cross section (EF005124) | 4 mm² |
| Material (EF002169) | Copper |
