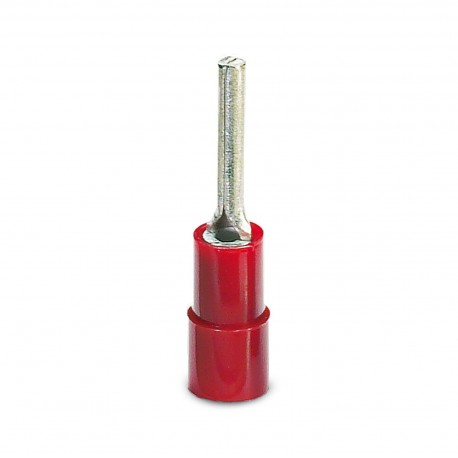

C-PCI 1,5/2 3240064 PHOENIX CONTACT Cable lug
C-PCI 1,5/2
3240064
PHOENIX CONTACT
100 Pcs.
Cable lug
Male cable lug, red, 0.5 - 1.5 mm², L1=12 mm
Finger jumper, red, 0.5 - 1.5 mm2, L1=12 mm
Automation > Solderless copper terminals for copper conductors
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3240064 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Catalog page | Page 496 (C-3-2017) |
| GTIN | 4046356452823 |
| Weight per Piece (excluding packing) | 0.750 g |
| Custom tariff number | 85369010 |
| Country of origin | CN (China) |
Dimensions
| Length (b) | 22.5 mm |
|---|---|
| Maximum stripping length | 7 mm |
| Length contact range | 12 mm |
| Length of insulation sleeve (c) | 10.5 mm |
| Inner dimension of the insulating collar (d) | 4.1 mm |
| Inner diameter (f) | 2 mm |
| Material thickness (g) | 0.75 mm |
General
| Color | red |
|---|---|
| Stripping length | 7 mm |
| Components | halogen-free |
| Flammability rating according to UL 94 | V2 |
| Material | Copper |
| Insulating material | PA |
| Coating | tin-plated |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027060701eCl@ss 4.127060701eCl@ss 5.027400201eCl@ss 5.127400200eCl@ss 6.027400200eCl@ss 7.027400204eCl@ss 8.027400204eCl@ss 9.027400204
| Feature Name | Feature Value |
|---|---|
| Flange shape (EF001339) | Pin shape |
| Colour insulation (EF001715) | Red |
| Nominal cross section (EF005124) | 0.5 mm² |
| Reel/roll packaging (EF001714) | No |
| Suitable for solid conductors (EF007816) | No |
| Suitable for stranded conductors (EF007818) | No |
| Suitable for fine strand conductors (EF007804) | No |
| Suitable for high temperatures (to 650 °C) (EF007812) | No |
| Suitable for insulated varnish (EF007815) | No |
| Suitable for round conductors (EF007820) | No |
| Suitable for flat conductors (EF007805) | No |
| For pull protected connections (EF001343) | No |
| Material (EF002169) | Copper |
