View larger
Images are for illustrative purposes only. Please refer to data sheet for details

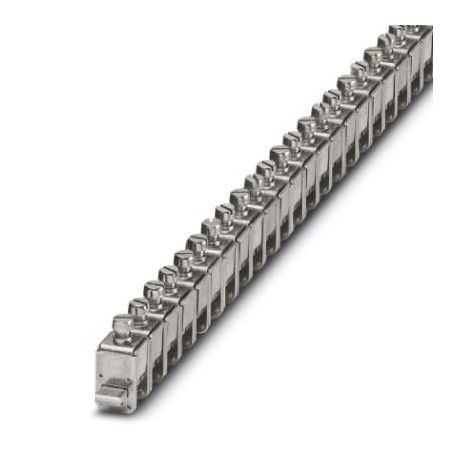

AK 35 0404046 PHOENIX CONTACT Connection terminal block
AK 35
0404046
PHOENIX CONTACT
50 Pcs.
Connection terminal block
Connection terminal, connection type: Screw connection, Dimensioning section: 35 mm², section: 2.5 mm² - 35 mm², mounting: Neutral busbar, colour: silver
Automation > Busbar terminal
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0404046 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Catalog page | Page 599 (C-3-2017) |
| GTIN | 4017918001865 |
| Weight per Piece (excluding packing) | 17.790 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
General
| Color | silver |
|---|---|
| Nominal cross section | 35 mm² |
| Flammability rating according to UL 94 | V2 |
| Maximum load current | 125 A (with 35 mm² conductor cross section) |
| Maximum power dissipation for nominal condition | 4.06 W |
| Connection in acc. with standard | IEC / EN |
Connection data
| Conductor cross section solid min. | 2.5 mm² |
|---|---|
| Conductor cross section solid max. | 35 mm² |
| Conductor cross section flexible min. | 2.5 mm² |
| Conductor cross section flexible max. | 35 mm² |
| Conductor cross section AWG min. | 14 |
| Conductor cross section AWG max. | 2 |
| 2 conductors with same cross section, solid min. | 1.5 mm² |
| 2 conductors with same cross section, solid max. | 16 mm² |
| 2 conductors with same cross section, stranded min. | 1.5 mm² |
| 2 conductors with same cross section, stranded max. | 16 mm² |
| Connection method | Screw connection |
| Stripping length | 16 mm |
| Screw thread | M6 |
| Tightening torque, min | 3.2 Nm |
| Tightening torque max | 3.7 Nm |
Standards and Regulations
| Connection in acc. with standard | IEC / EN |
|---|---|
| Flammability rating according to UL 94 | V2 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
