View larger
Images are for illustrative purposes only. Please refer to data sheet for details

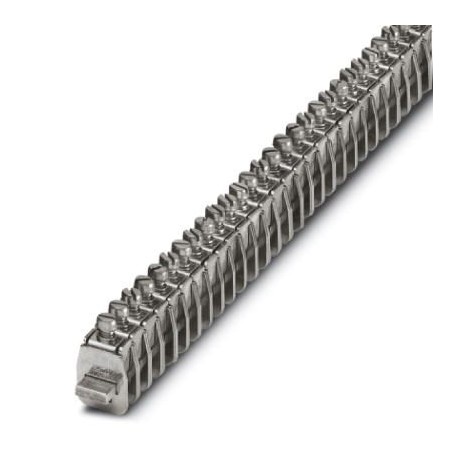

AK 16 0404033 PHOENIX CONTACT Pick-off terminal block, Connection method Screw connection, Load current : 76..
AK 16
0404033
PHOENIX CONTACT
50 Pcs.
Pick-off terminal block, Connection method Screw connection, Load current : 76 A, Cross section: 1.5 mm² - 16 mm², Width: 9.8 mm, Color: silver
Connection terminal, connection type: Screw connection, Dimensioning section: 16 mm², section: 1.5 mm² - 16 mm², mounting: Neutral busbar, colour: silver
Automation > Busbar terminal
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General
| Color | silver |
|---|---|
| Insulating material | PA |
| Nominal cross section | 16 mm² |
| Flammability rating according to UL 94 | V2 |
General
| Maximum load current | 76 A (with 16 mm² conductor cross section) |
|---|---|
| Nominal current IN | 76 A |
| Maximum load current | 76 A (with 16 mm² conductor cross section) |
Dimensions
| Length | 23.5 mm |
|---|---|
| Width | 9.8 mm |
Connection data
| Conductor cross section solid min. | 1.5 mm² |
|---|---|
| Conductor cross section solid max. | 16 mm² |
| Conductor cross section flexible min. | 1.5 mm² |
| Conductor cross section flexible max. | 16 mm² |
| Conductor cross section AWG min. | 16 |
| Conductor cross section AWG max. | 6 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 1.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 16 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 1.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 16 mm² |
| 2 conductors with same cross section, solid min. | 1.5 mm² |
| 2 conductors with same cross section, solid max. | 6 mm² |
| 2 conductors with same cross section, stranded min. | 1.5 mm² |
| 2 conductors with same cross section, stranded max. | 6 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 1.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 6 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 1.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 10 mm² |
| Connection method | Screw connection |
| Stripping length | 16 mm |
| Screw thread | M5 |
| Tightening torque, min | 2.5 Nm |
| Tightening torque max | 3 Nm |
