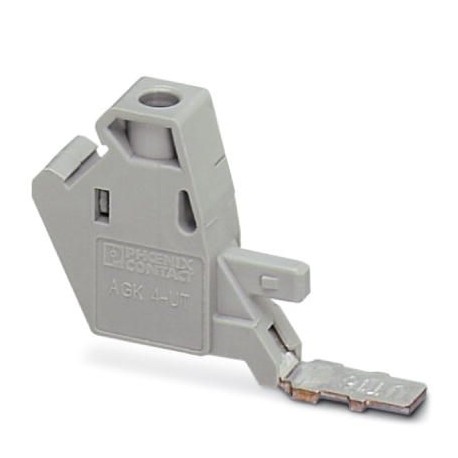

PHOENIX CONTACT AGK 4-UT 16 AGK 4-UT 16 3047125 PHOENIX CONTACT Pick-off terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AGK 4-UT 16 3047125 PHOENIX CONTACT Pick-off terminal block

AGK 4-UT 16

3047125

PHOENIX CONTACT

50 Pcs.

Pick-off terminal block Branch terminal, nominal voltage: 1000 V, nominal current: 32 A, number of connections: 1, connection type: Screw connection, cross-section: 0.14 mm² - 6 mm², mounting class: on base element, color: gray

Connectors > Terminal block connector
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3047125
Packing unit50 pc
Catalog pagePage 252 (C-1-2017)
GTIN4046356055895
Weight per Piece (excluding packing)6.010 g
Custom tariff number85369010
Country of originPL (Poland)

General

Colorgray
Insulating materialPA
Nominal cross section4 mm²
Flammability rating according to UL 94V0
Rated surge voltage8 kV
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition1.02 W
Connection in acc. with standardIEC/EN 60079-7
Nominal current IN32 A (with 4 mm² conductor cross section)
Maximum load current41 A (with 6 mm² conductor cross section)
Nominal voltage UN1000 V
Open side panelNo
Shock protection test specificationIEC 60529:2001-02
Back of the hand protectionguaranteed
Finger protectionguaranteed
Result of surge voltage testTest passed
Surge voltage test setpoint9.8 kV
Result of power-frequency withstand voltage testTest passed
Power frequency withstand voltage setpoint2.2 kV
Result of the test for mechanical stability of terminal points (5 x conductor connection)Test passed
Result of bending testTest passed
Bending test rotation speed10 rpm
Bending test turns135
Bending test conductor cross section/weight0.14 mm² / 0.2 kg
4 mm² / 0.9 kg
6 mm2/ 1.4 kg
Tensile test resultTest passed
Conductor cross section tensile test0.14 mm²
Tractive force setpoint10 N
Conductor cross section tensile test4 mm²
Tractive force setpoint60 N
Conductor cross section tensile test6 mm²
Tractive force setpoint80 N
Result of tight fit on supportTest passed
Tight fit on carrierNS 35
Setpoint5 N
Result of voltage-drop testTest passed
Requirements, voltage drop≤ 3.2 mV
Result of temperature-rise testTest passed
Short circuit stability resultTest passed
Conductor cross section short circuit testing4 mm²
Short-time current0.48 kA
Conductor cross section short circuit testing6 mm²
Short-time current0.72 kA
Result of thermal testTest passed
Proof of thermal characteristics (needle flame) effective duration30 s
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Length39.4 mm
Height NS 35/7,555.7 mm
Height NS 35/1563.2 mm
Width8.1 mm

Connection data

Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.6 mm²
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.4 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.10
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.4 mm²
2 conductors with same cross section, solid min.0.14 mm²
2 conductors with same cross section, solid max.1.5 mm²
2 conductors with same cross section, stranded min.0.14 mm²
2 conductors with same cross section, stranded max.1.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.1.5 mm²
Connection methodScrew connection
Stripping length9 mm
Internal cylindrical gageA4
Screw threadM3
Tightening torque, min0.6 Nm
Tightening torque max0.8 Nm

Standards and Regulations

Connection in acc. with standardCUL
IEC/EN 60079-7
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 3047125 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Connectable conductor cross section multi-wired (EF007343) 0.14 mm²
Rated current In (EF008250) 32 A
Rated voltage (EF000228) 1000 V
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Number of clamp positions per level (EF002660) 1
Suitable for conductor material (EF012572) Aluminium/copper
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 8.1 mm
Height (EF000040) 39.351021 mm
Depth (EF000049) 24.65 mm
Explosion-tested version 'Ex e' (EF008498) Yes
Closing plate required (EF002525) No
Colour (EF000007) Grey
Internally connected stages (EF002661) Yes
