View larger
Images are for illustrative purposes only. Please refer to data sheet for details

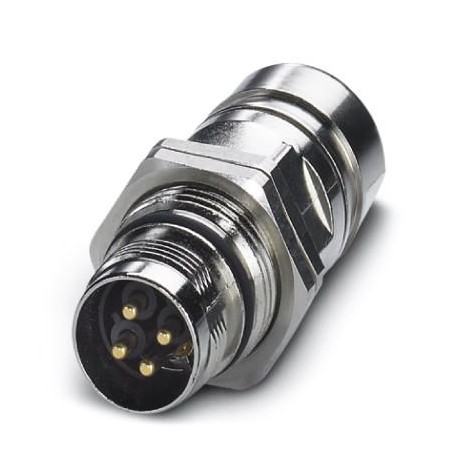

ST-3EP1N8AQ003S 1614595 PHOENIX CONTACT Coupler connector
ST-3EP1N8AQ003S
1614595
PHOENIX CONTACT
30 Pcs.
Coupler connector
Plug-in coupling connector, straight, SPEEDCON lock, M17, number of poles: 3+PE, contact type: Pin, cable diameter range: 5 mm ... 8 mm, number of poles: 4, connection type: Crimped connection
Connectors > Sensor-actuator connector chassis
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1614595 |
|---|---|
| Packing unit | 30 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356761598 |
| Weight per Piece (excluding packing) | 56.660 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Type of locking | SPEEDCON locking |
|---|---|
| Direction of rotation of contact chamber numbering | Standard |
| Coding | N |
| Contact connection method | Crimp connection |
| Type of contacts | Pin |
| Number of positions | 4 |
| Contact diameter of power contacts | 2 mm |
| Nominal current per power contact at 25°C | 20 A |
| Contact diameter of signal contacts | 2 mm |
| Conductor entry | 5 mm ... 8 mm |
Ambient conditions
| Ambient temperature | -40 °C ... 125 °C |
|---|---|
| Degree of protection | IP67, when in locked state |
Specifications according to DIN EN 61984:2001
| Nominal / operating voltage of power contacts | 630 V |
|---|---|
| Rated surge voltage of power contacts | 6 kV |
| Overvoltage category of power contacts | III |
| Degree of pollution of power contacts | 3 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
