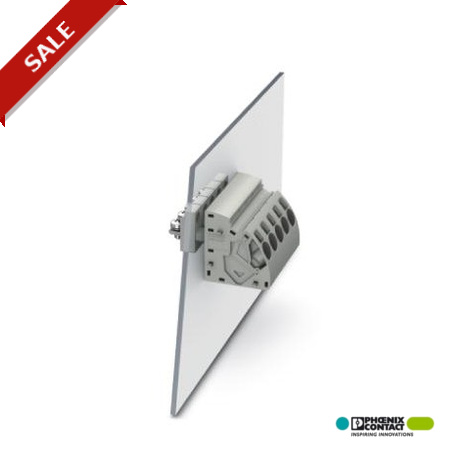

PHOENIX CONTACT PWO 16-POT/S PWO 16-POT/S 1705654 PHOENIX CONTACT Panel feed-through terminal block, Connection method: Push-in spring co.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PWO 16-POT/S 1705654 PHOENIX CONTACT Panel feed-through terminal block, Connection method: Push-in spring co..

PWO 16-POT/S

1705654

PHOENIX CONTACT

50 Pcs.

Panel feed-through terminal block, Connection method: Push-in spring connection, Cable lug connection, Load current : 76 A, Cross section: 1.5 mm² Wall terminal block, connection type: Push-in spring connection, Terminal connection, number of poles: 1, charging current: 76 A, cross-section: 1.5 mm² - 16 mm², conductor connection direction with respect to the plug direction: 45 °, width: 12 mm

Automation > Panel feed-through terminal block
PCB Connectors (PCC)
