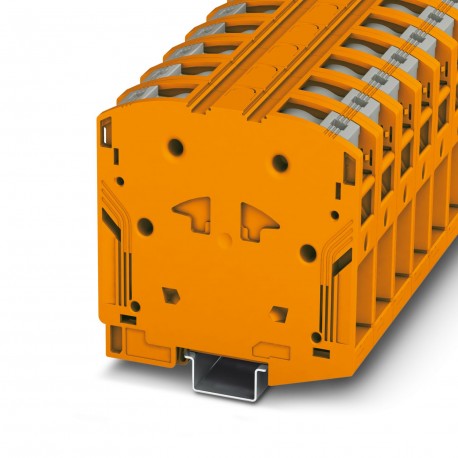

PTPOWER 50 OG 3260069 PHOENIX CONTACT High-current terminal block

PTPOWER 50 OG

3260069

PHOENIX CONTACT

10 Pcs.

High-current terminal block Current terminal, nominal voltage: 1000 V, nominal current: 150 A, number of connections: 2, number of poles: 1, connection type: PowerTurn connection, 1st floor, cross-section: 10 mm² - 70 mm², mounting class: NS 35/15, color: orange Power terminals, rated voltage: 1000 V, rated current: 150 A, number of connections: 2, number of poles: 1, connection type: PowerTurn connection, 1. flat, cross-section: 10 mm2 - 70 mm2, mounting type: NS 35/15, colour: orange

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3260069
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
GTIN4055626230535
Weight per Piece (excluding packing)157.290 g
Custom tariff number85369010
Country of originPL (Poland)

General

Number of positions1
Number of levels1
Number of connections2
Potentials1
Nominal cross section50 mm²
Colororange
Insulating materialPA
Flammability rating according to UL 94V0
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition4.73 W
Maximum load current150 A (with 70 mm² conductor cross section)
Nominal current IN150 A
Nominal voltage UN1000 V AC
1500 V DC
Open side panelNo

Dimensions

Width20 mm
Length101 mm
Height NS 35/15105 mm

Connection data

Connection methodPower-Turn connection
Connection in acc. with standardIEC 60947-7-1
Conductor cross section solid min.10 mm²
Conductor cross section solid max.70 mm²
Conductor cross section AWG min.8
Conductor cross section AWG max.2/0
Conductor cross section flexible min.10 mm²
Conductor cross section flexible max.70 mm²
Min. AWG conductor cross section, flexible8
Max. AWG conductor cross section, flexible2/0
Conductor cross section flexible, with ferrule without plastic sleeve min.10 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.50 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.10 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.50 mm²
Cross section with insertion bridge solid min.10 mm²
Cross section with insertion bridge, solid max.50 mm²
Cross section with insertion bridge stranded min.10 mm²
Cross section with insertion bridge, stranded max.50 mm²
Cross section with insertion bridge stranded, with ferrule without plastic sleeve min.10 mm²
Cross section with insertion bridge stranded, with ferrule without plastic sleeve max.50 mm²
Cross section with insertion bridge stranded, with ferrule without plastic sleeve min.10 mm²
Cross section with insertion bridge stranded, with ferrule with plastic sleeve max.50 mm²
Stripping length30 mm ... 32 mm
Internal cylindrical gageA10

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3260069 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 10 mm²
Connectable conductor cross section solid-core (EF007337) 10 mm²
Rated current In (EF008250) 150 A
Rated voltage (EF000228) 1000 V
Type of electrical connection 1 (EF002526) Other
Type of electrical connection 2 (EF002527) Other
Number of clamp positions per level (EF002660) 2
Suitable for conductor material (EF012572) Aluminium/copper
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 20 mm
Height (EF000040) 101 mm
Depth (EF000049) 105 mm
Closing plate required (EF002525) No
Colour (EF000007) Orange
Internally connected stages (EF002661) Yes
