View larger
Images are for illustrative purposes only. Please refer to data sheet for details

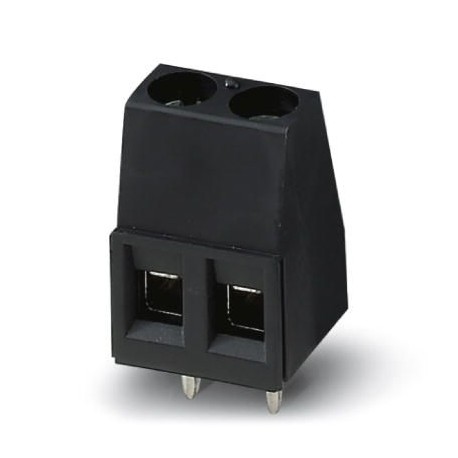

MKDS 1,5/10-5,08 HT BK 1708677 PHOENIX CONTACT PCB terminal block
MKDS 1,5/10-5,08 HT BK
1708677
PHOENIX CONTACT
50 Pcs.
PCB terminal block
Terminal block for printed circuit board, nominal current: 17.5 A, dimensioning voltage (III/2): 320 V, nominal section: 1.5 mm², Number of potentials: 10, Number of rows: 1, Number of poles per row: 10, family of articles: MKDS 1.5/.. -HT, pitch: 5.08 mm, connection type: Screw connection with traction capsule, mounting: Weld THR, conductor connection direction/printed circuit board: 0 °, color: black, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, packaging type: boxed packaging. The item can be aligned with different numbers of poles!
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1708677 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626014128 |
| Weight per Piece (excluding packing) | 14.210 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Dimensions
| Length [ l ] | 8.1 mm |
|---|---|
| Pitch | 5.08 mm |
| Dimension a | 45.72 mm |
| Width [ w ] | 50.8 mm |
| Height | 10 mm |
| Height [ h ] | 13.5 mm |
| Solder pin [P] | 3.5 mm |
| Hole diameter | 1.3 mm |
General
| Range of articles | MKDS 1,5/..-HT |
|---|---|
| Nominal cross section | 1.5 mm² |
| Solder pin surface | |
| Number of positions | 10 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
