View larger
Images are for illustrative purposes only. Please refer to data sheet for details

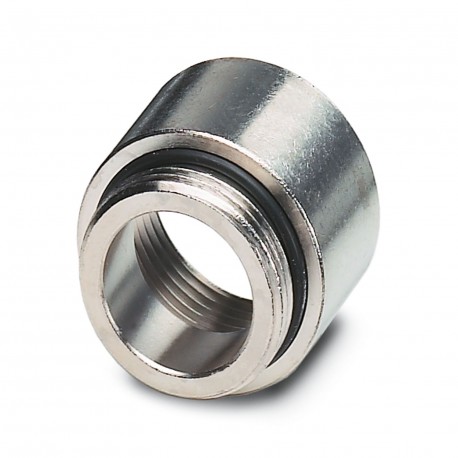

HC-NPT-1/2-M20 1686847 PHOENIX CONTACT Adapter
HC-NPT-1/2-M20
1686847
PHOENIX CONTACT
25 Pcs.
Adapter
NPT adapter, IP 68, up to 5 bar, incl. O-ring packing, M20 in 1/2"
Cables > Enlargement/reducing ring
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1686847 |
|---|---|
| Packing unit | 25 pc |
| Catalog page | Page 694 (C-4-2015) |
| GTIN | 4017918822705 |
| Weight per Piece (excluding packing) | 31.670 g |
| Custom tariff number | 74199990 |
| Country of origin | DE (Germany) |
Dimensions
| Length | 25 mm |
|---|---|
| Length without connecting thread | 18.5 mm |
| Connecting thread diameter | 20 mm |
| Length of the connecting thread | 6.5 mm |
Ambient conditions
| Degree of protection (IP) | IP68 (Depends on the screw connection used) |
|---|---|
| Ambient temperature (operation) | -20 °C ... 80 °C |
General
| Material | Brass, nickel-plated |
|---|---|
| Cable gland material | Nickel-plated brass |
| O-ring material | NBR |
| Thread type connection side | M20 |
| Thread type on seal side | 1/2-inch NPT |
| Thread type on connection side | M20 |
| Color | silver |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027141209eCl@ss 4.127141209eCl@ss 5.027149109eCl@ss 5.127149100eCl@ss 6.027149100eCl@ss 7.027439207eCl@ss 8.027439207eCl@ss 9.027430314
| Feature Name | Feature Value |
|---|---|
| Thread type inner thread (EF005703) | NPT |
| Thread size inner thread (metric) (EF003719) | 40 |
| Thread size inner thread (inch) (EF005701) | 1 1/2 inch |
| Thread type outer thread (EF005704) | Metric |
| Thread size outer thread (metric) (EF003720) | 20 |
| Thread size PG outer thread (EF006447) | 29 |
| Nickel-plated (EF001206) | No |
| Explosion-proof (EF004663) | No |
