View larger
Images are for illustrative purposes only. Please refer to data sheet for details

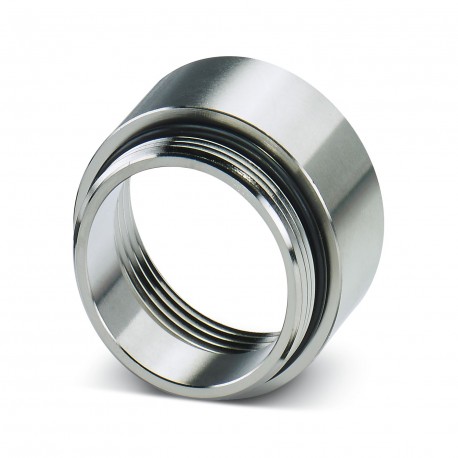

HC-NPT-1 1/4-M40 1687587 PHOENIX CONTACT Adapter
HC-NPT-1 1/4-M40
1687587
PHOENIX CONTACT
10 Pcs.
Adapter
NPT adapter, IP 68, up to 5 bar, incl. O-ring packing, M40 in 1 1/4"
NPT adapter, IP68, up to 5 bar, incl. O-ring seal, M40 to 1 1/4"
Cables > Enlargement/reducing ring
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | NPT adapter |
| Data management status | |
| Article revision | 02 |
Dimensions
| Dimensional drawing |  |
| Length | 26 mm |
| Length of the connecting thread | 8 mm |
| Length without connecting thread | 18 mm |
| Diameter | 40 mm |
| Connecting thread diameter | 40 mm |
| Thread type connection side | M40 |
| Thread type on seal side | 1 1/4 in. NPT |
Material specifications
| Color | Brass color |
| Material | Brass, nickel-plated |
| Seal material O-ring | NBR |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP68 (Depends on the screw connection used) |
| Ambient temperature (operation) | -20 °C ... 80 °C |
| Feature Name | Feature Value |
|---|---|
| Thread type inner thread (EF005703) | NPT |
| Thread size inner thread (metric) (EF003719) | 40 |
| Thread size inner thread (inch) (EF005701) | 1 1/4 inch |
| Thread type outer thread (EF005704) | Metric |
| Thread size outer thread (metric) (EF003720) | 40 |
| Thread size PG outer thread (EF006447) | 29 |
| Nickel-plated (EF001206) | No |
| Explosion-proof (EF004663) | No |
