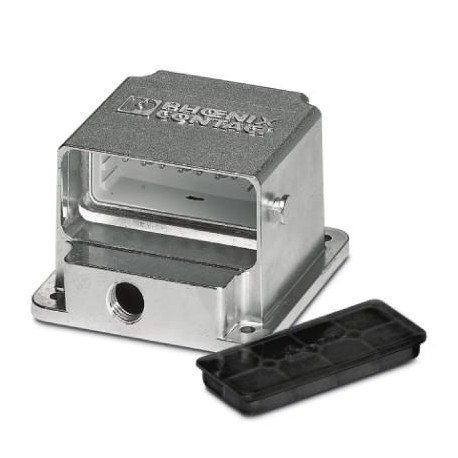

HC-MOT-AFL-SET 1409053 PHOENIX CONTACT Housing set
HC-MOT-AFL-SET
1409053
PHOENIX CONTACT
1 Pcs.
Housing set
Conn. Pluggable Side Motor, Carc. of embedded metal. EMC incl. crimp contact insert, c. flange seal and protective cap. painted, without contact. engem., carc. c. Thick-coated passivation suitable for painting
Connectors > Housing for rectangular connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1409053 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 53 (C-2-2013) |
| GTIN | 4046356619349 |
| Weight per Piece (excluding packing) | 259.800 g |
| Custom tariff number | 79070000 |
| Country of origin | DE (Germany) |
General
| Degree of pollution | 3 |
|---|---|
| Insertion/withdrawal cycles | ≥ 100 |
| Size | MOT |
| Conductor cross section | 0.35 mm² ... 2.5 mm² (Power crimp contacts) |
| 0.14 mm² ... 1 mm² (Control crimp contacts) | |
| Connection cross section AWG | 20 ... 14 (Power crimp contacts) |
| 26 ... 18 (Control crimp contacts) | |
| Stripping length of the individual wire | 6 mm (Power crimp contacts) |
Material data
| Seal material | EPDM |
|---|---|
| Housing material | PA |
| Contact material | CuZn |
| Contact surface material | Au |
| Material of contact surface, control contact | Au |
| Contact carrier material | PA |
Electrical characteristics
| Rated voltage (III/3) | 250 V (Signal) |
|---|---|
| Rated surge voltage | 6 kV (Phase/housing power circuit) |
| 8 kV (Phase/phase power circuit) | |
| 4 kV (Control circuit) | |
| Rated current | 16.5 A (power contacts) |
| 2.5 A (control contacts) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027143424eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440202eCl@ss 8.027440202eCl@ss 9.027440202
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 75 mm |
| Height (EF000040) | 47 mm |
| Depth (EF000049) | 75 mm |
| Type of housing (EF006980) | Housing extension |
| Housing material (EF001596) | Other |
| Coating housing (EF001601) | Other |
| Position cable feed (EF008218) | Other |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | Other |
| With hinged lid (EF000117) | Yes |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | No |
| Type of locking (EF000208) | Single locking lever |
| Operating temperature (EF002393) | -30 °C |
| EMC-version (EF001062) | No |
| Degree of protection (IP), mounted (EF007466) | IP67 |
